Barron Flanged Cover For 20" Conveyor X 10ft | 12 Ga. Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-310-3892
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Barron Flanged Cover For 20" Conveyor X 10ft | 12 Ga. Steel Features
Barron Flanged Cover For 20" Conveyor X 10ft | 12 Ga. Steel Specifications

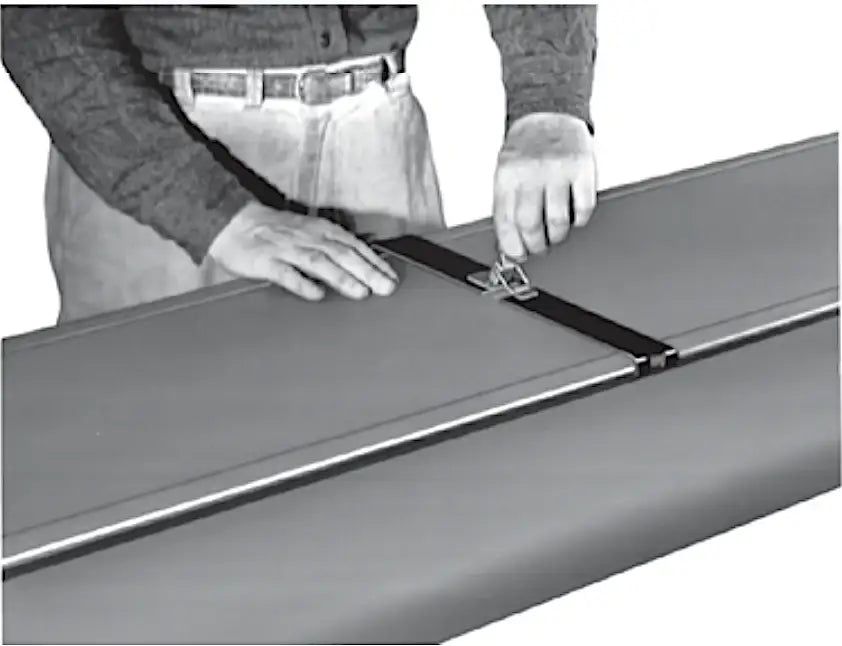

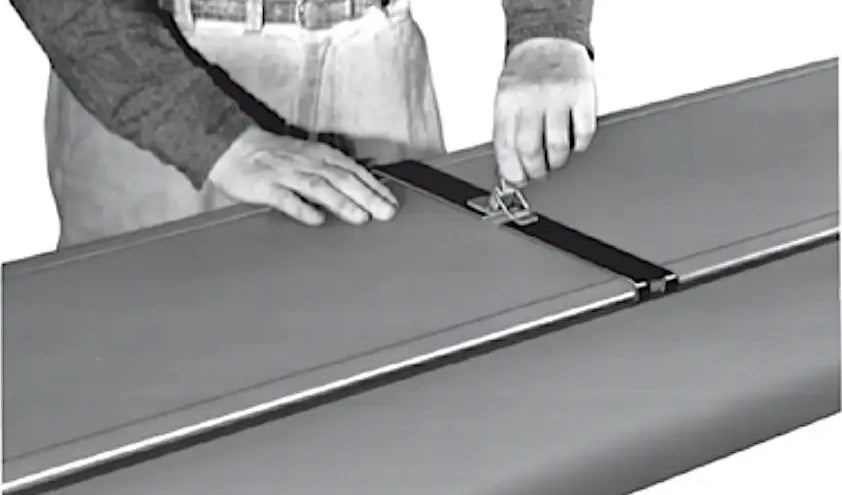

Barron flanged cover for 20" conveyor X 10ft long is made from 12-gauge steel and is designed with gaskets between the cover and trough as well as under the Barron clamps to provide a degree of weather protection. For an increased weather protection battens can be mounted lapping the cover joints, the cover should then be bolted or screw clamped to prevent access. The Barron flanged covers also have the ability to be used with angle troughs, in which case they should also be bolted or screw clamped. For additional information or to get a quote on Barron flanged cover for 20" conveyor X 10ft long contact our customer service team and we will be happy to assist you.
Barron Flanged Cover For 20" Conveyor X 10ft Long Dimensions
- Part #: 310-3892
- Conveyor Size: 20"
- Gauge of Steel: 12
- Dimension (A): 21"
- Dimension (B): 2-13/16"
- Weight Per Foot: 10.2 LBS
- Part #: 310-3892
- Conveyor Size: 20"
- Gauge of Steel: 12
- Dimension (A): 21"
- Dimension (B): 2-13/16"
- Weight Per Foot: 10.2 LBS
