Tite-Seal 9" Conveyor Cover 5ft 14 Ga. Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-312-2165
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Tite-Seal 9" Conveyor Cover 5ft 14 Ga. Steel Features
Tite-Seal 9" Conveyor Cover 5ft 14 Ga. Steel Specifications

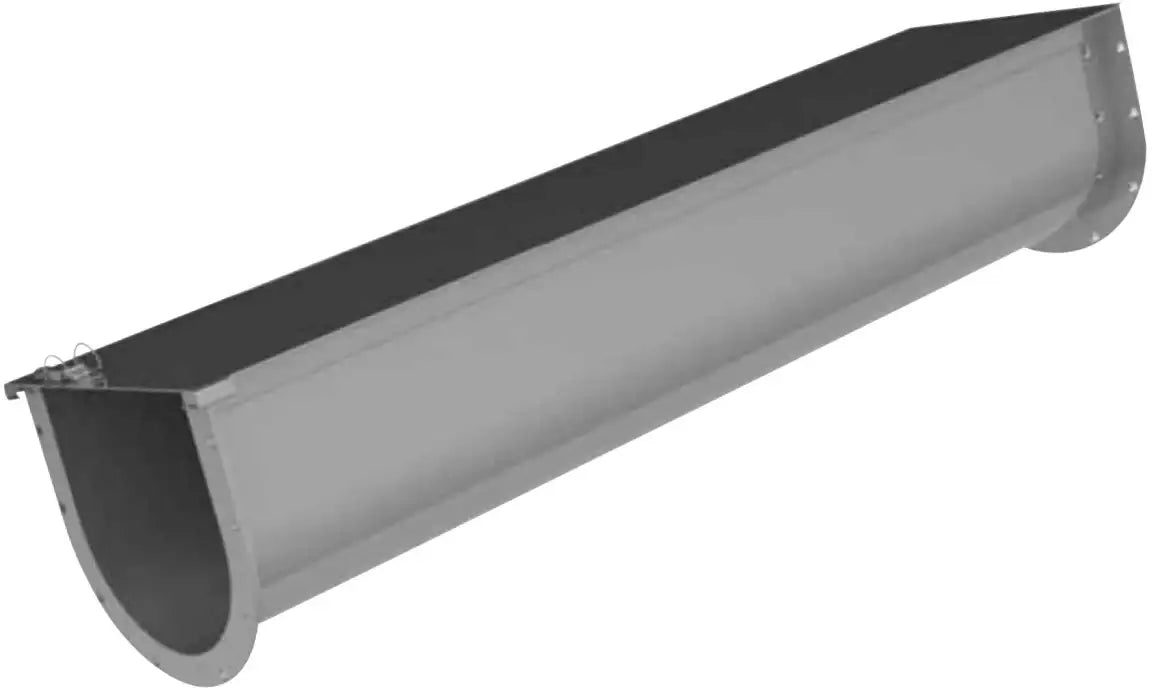

Tite-Seal cover for 9" conveyor X 5ft long is made from 14-gauge steel and is designed for use with angle troughs, Tite-Seal covers provide a certain degree of dut protection. The flat cover is held in place securely by a continuous formed steel U edging along both sides of the trough. This U edging is fitted with sponge rubber and seals the cover of the trough. The Tite-Seal quick-release cover clamps securely hold the cover in place and prevent accidental access to the screw conveyor, while providing easy access to the trough interior when needed. A gasket attached to the underside of the cover clamp seals the joint between lengths of the conveyor. For additional information or to get a quote on Tite-Seal cover for 9" conveyor X 5ft long contact our customer support team and we will be happy to assist you.
Tite-Seal cover for 9" conveyor X 5ft long Dimensions
- Part #:312-2165
- Conveyor Size: 9"
- Gauge of Steel: 14
- Dimension (A): 13-1/4"
- Dimension (B): 1-1/2"
- Weight Per Foot: 3.4 LBS
- Part #:312-2165
- Conveyor Size: 9"
- Gauge of Steel: 14
- Dimension (A): 13-1/4"
- Dimension (B): 1-1/2"
- Weight Per Foot: 3.4 LBS
