5/16" Round Belt Guide | Mounted 0.3125" Round Belt Guide
Note:
Custom Cut to Length Chain Also Available
SKU: 7539-170115-BELT-GUIDE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
5/16" Round Belt Guide | Mounted 0.3125" Round Belt Guide Features
5/16" Round Belt Guide | Mounted 0.3125" Round Belt Guide Specifications

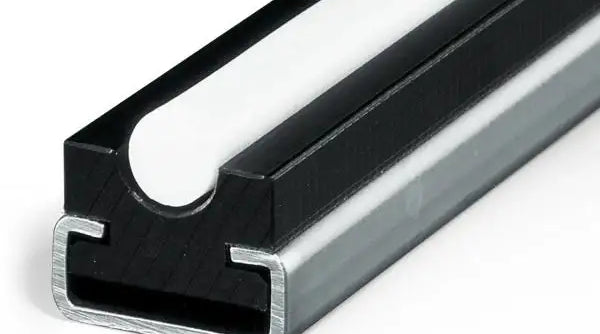

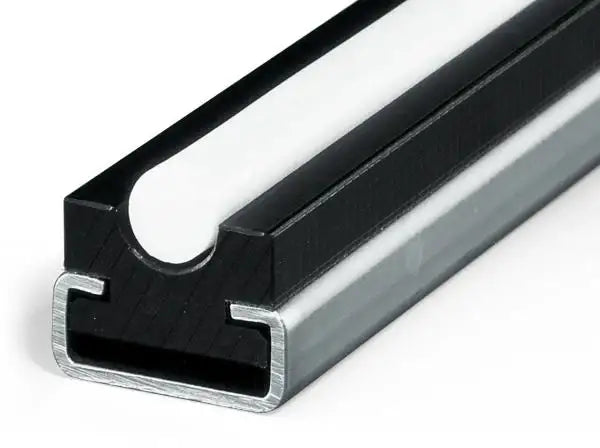

Our UHMW 1/4" mounted round belt guide is precision manufactured and engineered to increase the working life of 1/4" round belts while also reducing noise and friction. Mounted 0.25" round guides are supplied with galvanized or stainless steel mounting channel; the channel provides support for the guide and easy mounting into current systems. Standard round belt guide and channel lengths are 10ft and 20ft, but specific lengths can be supplied upon request. We also supply the round belt guide itself in alternate grades of UHMW to broaden the application usability.
Round Belt Guide UHMW Options
- Black Repro UHMW - Lower Material Cost
- Oil-Filled UHMW - Higher Speed Rating
- Green Repro UHMW - European DIN Standard
- Static-Dissipative UHMW - Conductive
- High-Temp UHMW (HT) - Operates Up To 275�F
Mounted 0.25" Round Belt Guide Dimensions
- Part #: 170115
- Round Belt Diameter: 5/16"
- Mounting Channel Type: C3
- Mounting Channel Material: Galvanized or Stainless Steel
- Dimension (A): 0.59"
- Dimension (B): 0.78"
- Dimension (C): 0.19"
- Dimension (D): 0.38"
- Dimension (E): 0.78"
- Part #: 170115
- Round Belt Diameter: 5/16"
- Mounting Channel Type: C3
- Mounting Channel Material: Galvanized or Stainless Steel
- Dimension (A): 0.59"
- Dimension (B): 0.78"
- Dimension (C): 0.19"
- Dimension (D): 0.38"
- Dimension (E): 0.78"
