Specialty Chain > Engineering Class Chains > 81X Steel Bushed Roller Chains > 81XXHD Chain

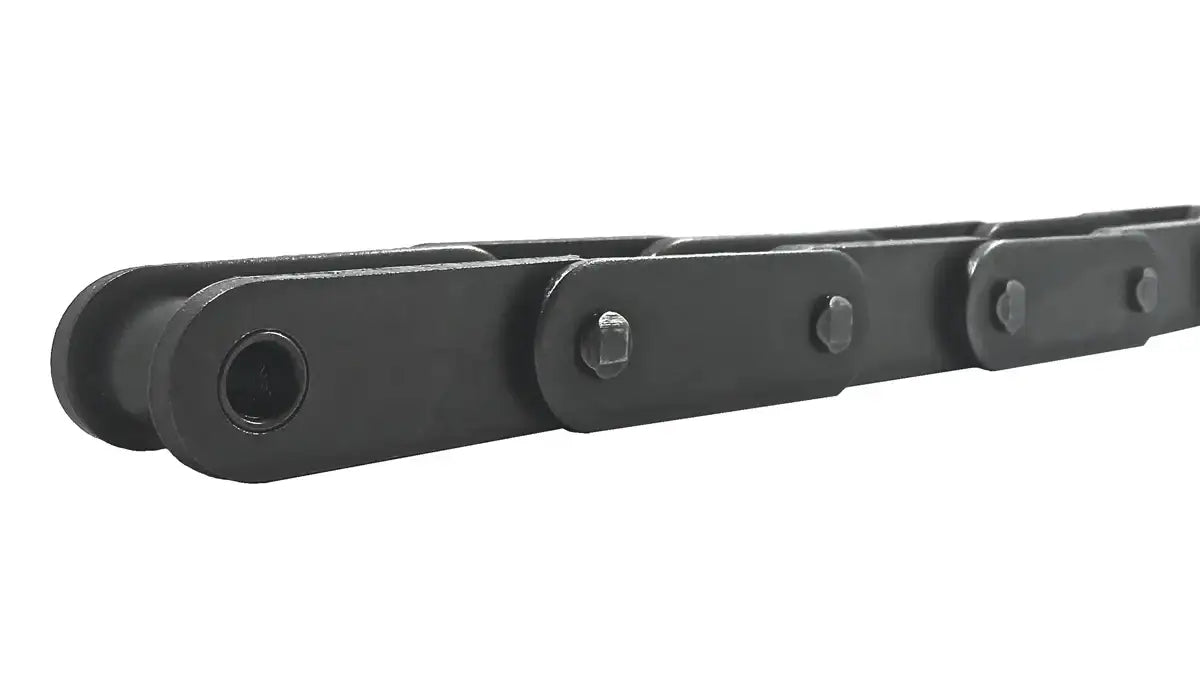

Extra Heavy Duty 81XXHD Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 81XXHD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Extra Heavy Duty 81XXHD Roller Chain Features
Extra Heavy Duty 81XXHD Roller Chain Specifications
Extra Heavy Duty 81XXHD Roller Chain is manufactured for heavy-duty conveying applications that require a super high strength 81X series chain. It is the absolute strongest version of 81X chain on the market and boasts an extremely high tensile strength, thick side-plates, quad-staked pins, and uses a solid bushing solid roller (SBR) design to ensure you are getting the best wear life out of this chain. Our 81XXHD roller chain also implements heat-treated components such as the pins, bushings, side-plate, and rollers to further increase the working life and strength of the chain.

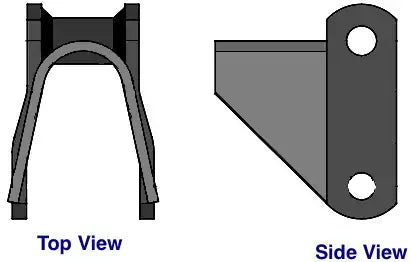

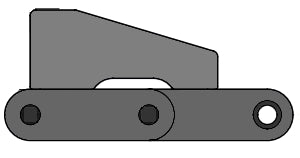

Not only do we supply the chain, but we also have a wide variety of 81X sprockets as well as a full line of attachments available for 81X chains. For more information or to get a formal quote on 81XXHD roller chain please contact us and we will be happy to assist you.
81XXHD Roller Chain Dimensions
Chain #: 81XXHD Pitch (P): 2.609" Roller Width (W): 1.062" Roller Diameter (R): 0.905" Plate Height (H): 1.122" Plate Thickness (T): 0.312" Pin Diameter (D): 0.437" Overall Chain Width (F): 2.62" Overall Connecting Link Width: 2.75" Tensile Strength: 43,000 LBS Weight Per Foot: 4.5 LBS
Not only do we supply the chain, but we also have a wide variety of 81X sprockets as well as a full line of attachments available for 81X chains. For more information or to get a formal quote on 81XXHD roller chain please contact us and we will be happy to assist you.
Chain #: 81XXHD Pitch (P): 2.609" Roller Width (W): 1.062" Roller Diameter (R): 0.905" Plate Height (H): 1.122" Plate Thickness (T): 0.312" Pin Diameter (D): 0.437" Overall Chain Width (F): 2.62" Overall Connecting Link Width: 2.75" Tensile Strength: 43,000 LBS Weight Per Foot: 4.5 LBS
