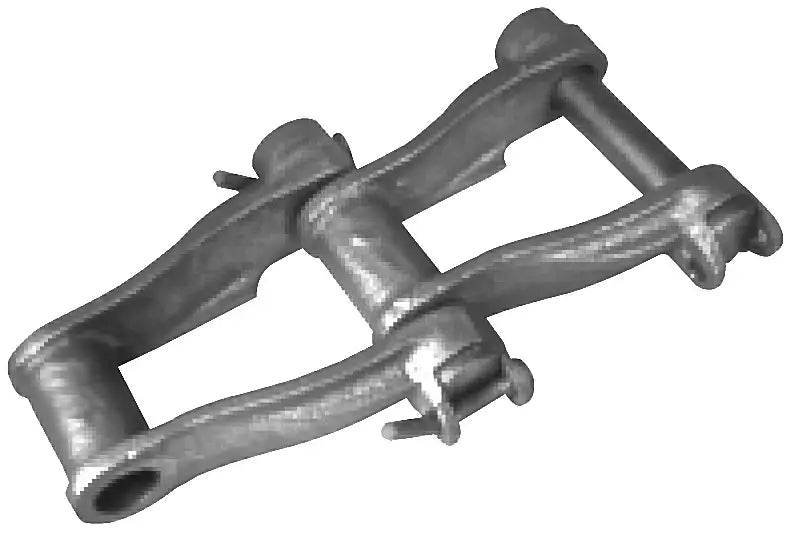

844RD Chain (Pintle Chain)
Note:
Custom Cut to Length Chain Also Available
SKU: 844RD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
844RD Chain (Pintle Chain) Features
844RD Chain (Pintle Chain) Specifications

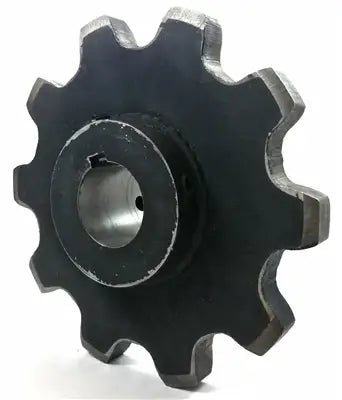

844RD chain is part of the 800-Class pintle chain series and is a high-quality, durable, and high strength chain. This 844RD pintle chain features a special design which virtually eliminates the possibility of the chain or buckets failing due to pin breakage. The special design incorporates a cotter or bolt over the head of the pin and through the integrally cast pin stop lugs. A second cotter or bolt is used at the opposite end of the pin and passes through the integrally cast extended boss and pin. The result of this is the pin being locked into place in the unlikely case of a pin breaking, keeping the chain intact. We offer a wide range of 844RD chain sprockets, bucket attachments, as well as other attachments at a very competitive price. For more information or to get pricing and availability please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Chain Size: 844RD
- Pitch: 6.00"
- Chain Weight: 17.0 LBS/ FT
- Recommended Working Load: 10,500 LBS
- Average Ultimate Strength: 124,000 LBS
- Barrel Diameter (B): 2.00"
- Barrel Length (C): 3.50"
- Pin Diameter (D): 1.00"
- Maximum Sprocket Width (E): 2.25"
- Side Bar Width (F): 2.25"
- Pin Head To Center Line (G): 4.06"
- Pin End To Center Line (H): 3.31"
- Maximum Overall Width (J): 8.13"
- Chain Size: 844RD
- Pitch: 6.00"
- Chain Weight: 17.0 LBS/ FT
- Recommended Working Load: 10,500 LBS
- Average Ultimate Strength: 124,000 LBS
- Barrel Diameter (B): 2.00"
- Barrel Length (C): 3.50"
- Pin Diameter (D): 1.00"
- Maximum Sprocket Width (E): 2.25"
- Side Bar Width (F): 2.25"
- Pin Head To Center Line (G): 4.06"
- Pin End To Center Line (H): 3.31"
- Maximum Overall Width (J): 8.13"
