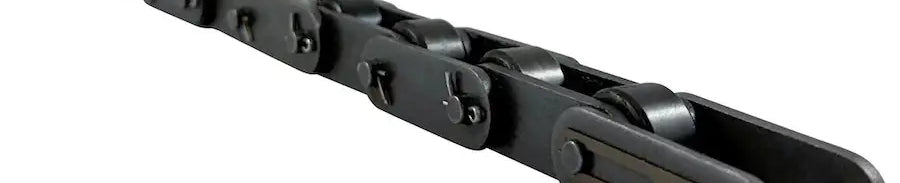

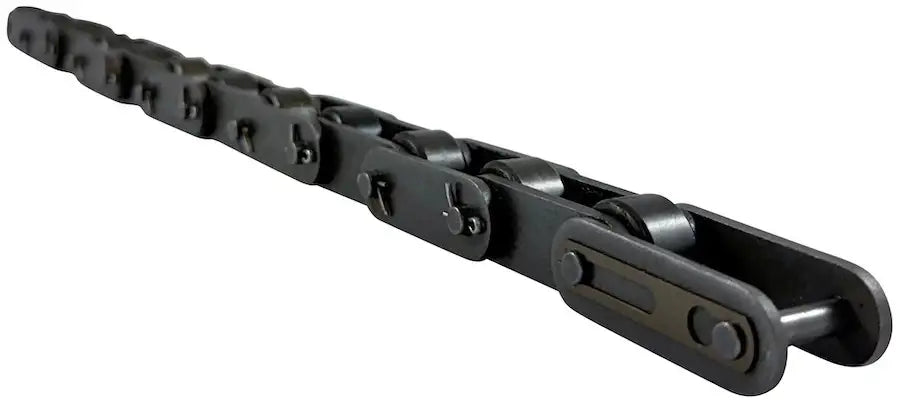

C2162H Cottered Roller Chain
Login to Request a Quote
C2162H cottered roller chain is manufactured using cotters instead of rivets. This creates a chain that is easier to disassemble than a standard riveted chain. Our C2162H cottered chain is manufactured in accordance with ANSI B29 Standards, meaning that it will directly interchange with other brands. This chain also uses heat-treated and shot peened components for an improved working life an durability, it also features solid rollers and is pre-stretched for a better long-term performance. Typically we supply C2162H cottered roller chain in 10ft boxes but alternate lengths are available upon request. We also supply
C2162H Cottered Chain Dimensions
- Chain Size: C2162H
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 2.250"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Weight: 9.12 LBS/ FT
- Chain Size: C2162H
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 2.250"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Weight: 9.12 LBS/ FT
