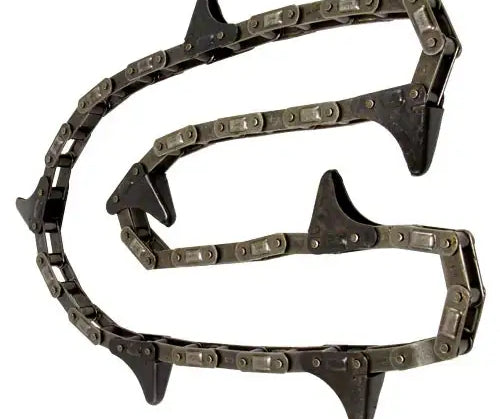

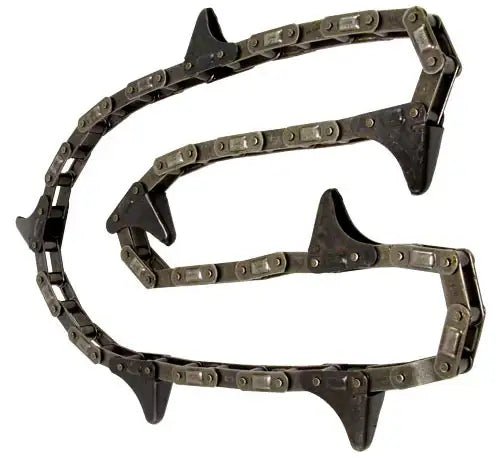

71505705 Massey Ferguson Gathering Chain

This 71505705 corn head gathering chain assembly fits Massey Ferguson corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA550 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It has six (6) C17E attachments/ gathering lugs that are spaced every 13.58" and it is 50 links long, which is 81.50" total. We can also supply sprockets, bearings, and other accessories that go to corn head gathers, combines, and other types of agricultural equipment.

71505705 Chain Dimensions

CA550 Chain Dimensions

• Chain Size: CA550
• Pitch (P): 1.630"
• Roller Width (W): 0.797"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.420"
• Overall Width Cottered: 1.563"
• Link Plate Height (H): 0.750"
• Link Plate Thickness (T): 0.105"
• Pin Diameter (E): 0.281"
• Ultimate Strength: 11,250 LBS

Attachment/ Gathering Lug Dimensions

• Attachment #: CA550 C17E
• Dimension (C): 1.266"
• Angle (R): 15 Degrees
• Dimension (S): 3.000"
• Dimension (T): 0.105"
