AN102009 John Deere Gathering Chain Replacement

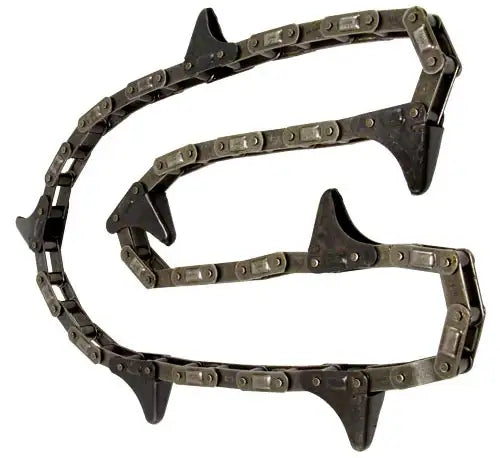

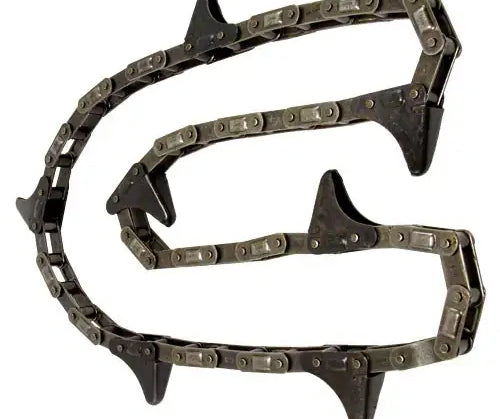

This AN102009 corn head gathering chain assembly fits John Deere Harvester 40 and 90 series corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA555 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It has eight (8) C6E attachments/ gathering lugs that are spaced every 9.78" and it is 48 links long, which is 78.24" total. We can also supply sprockets, bearings, and other accessories that go to corn head gathers, combines, and other types of agricultural equipment.

AN102009 Chain Dimensions

CA555 Chain Dimensions

• Chain Size: CA555
• Pitch (P): 1.630"
• Roller Width (W): 0.500"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.172"
• Overall Width Cottered: 1.250"
• Link Plate Height (H): 0.750"
• Link Plate Thickness (T): 0.125"
• Pin Diameter (E): 0.281"
• Ultimate Strength: 11,250 LBS

Attachment/ Gathering Lug Dimensions

• Attachment #: CA555 C6E
• Dimension (C): 1.047"
• Angle (R): 15 Degrees
• Dimension (S): 2.625"
• Dimension (T): 0.125"
