DS80A18H Sprocket (Double Single)
Note:
Custom Cut to Length Chain Also Available
$150.99
SKU: DS-80A18H-SPROCKET-SB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
DS80A18H Sprocket (Double Single) Features
DS80A18H Sprocket (Double Single) Specifications

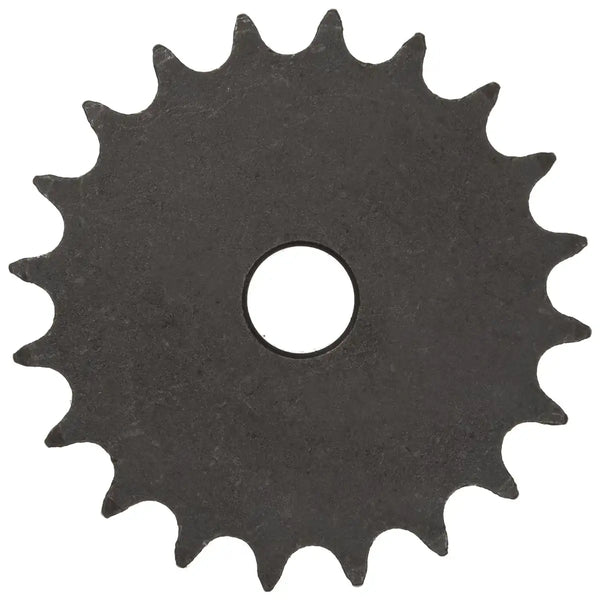

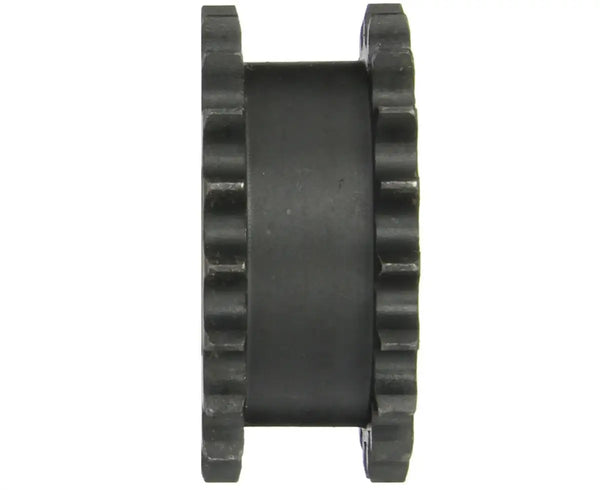

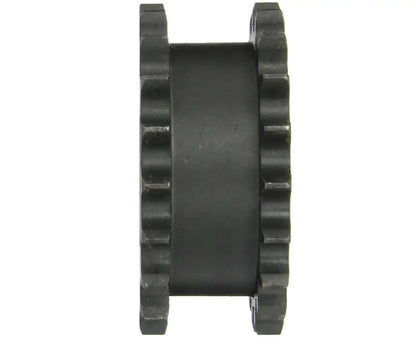

This double single type A DS80A18H sprocket with 18 hardened teeth is manufactured to run two separate strands of #80-1 Roller chain and is supplied with a 1" stock bore. This DS80A18H sprocket is made from high quality carbon steel, and has heat-treated hardened teeth, meaning that this sprocket is extremely durable and high strength. Type A (A-Plate) sprockets have a narrow profile and no hub, and are easily adaptable for bushings, bearings, and sleeves. They can be used with large diameter shafts, drilled for mounting, or welded directly to other apparatuses. We havre bushed type double-single sprockets on the shelf and the capabilities to re-bore/ machine these sprockets out ranging from 1" bore to 3-1/8" bore. Please contact us for additional questions on double single sprockets, custom quotes, or for large quantity request.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: DS80A18H
- Tooth Count: 18
- Outside Diameter: 6.270"
- Pitch Diameter: 5.759"
- Sprocket Type: A
- Minimum More: 1"
- Maximum Bore: 3-1/8"
- Dimension (L): 2-3/16"
- Dimension (C): 1-5/8"
- Dimension (E): 4-41/64"
- Dimension (W): 0.575"
- Weight: 12.1 LBS
Email:
- Sprocket Size: DS80A18H
- Tooth Count: 18
- Outside Diameter: 6.270"
- Pitch Diameter: 5.759"
- Sprocket Type: A
- Minimum More: 1"
- Maximum Bore: 3-1/8"
- Dimension (L): 2-3/16"
- Dimension (C): 1-5/8"
- Dimension (E): 4-41/64"
- Dimension (W): 0.575"
- Weight: 12.1 LBS
