Roller Chain > More Roller Chains > Double Pitch Roller Chain > Double Pitch Conveyor Roller Chain > C2082H Conveyor Chain

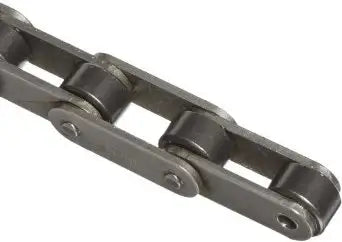

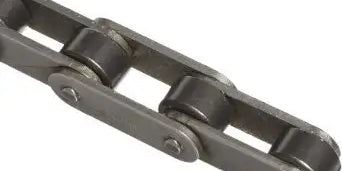

C2082H Roller Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-C2082H-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
C2082H Roller Chain 10ft Box Features
C2082H Roller Chain 10ft Box Specifications
C2082H roller chain is manufactured to ANSI Specifications and is a good quality roller chain. This chain features oversized rollers making it good for a wide range of conveying, drive, and carry applications. C2082H roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. In addition to plain C2082H chain we also offer a full line of attachment and C2082H sprockets! Fore more information or to get a quote on sprockets or attachment chain please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
C2082H Chain Dimensions
- Chain Size: C2082H
- Pitch (P): 2.000"
- Roller Width (W): 0.625"
- Roller Diameter (R): 1.125"
- Plate Height (H): 0.935"
- Plate Thickness (T): 0.156"
- Pin Diameter (D): 0.312"
- Chain Width (F): 1.398"
- Connecting Link Width (G): 1.512"
- Tensile Strength: 14,650 LBS
- Weight: 2.367 LBS/ FT
C2082H Roller Chain Sprockets
We also have a full line of C2082H roller chain sprockets in stock. These sprockets are manufactured with a special tooth profile for maximum sprocket and chain life, they also have hardened teeth, and are black oxide coated.| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
| 2082B8 | 8 | 6.030" | 1" | 2-17/32" | 1-3/4" | 6.4 LBS |
| 2082B9 | 9 | 6.700" | 1" | 2-3/4" | 1-3/4" | 8.2 LBS |
| 2082B10 | 10 | 7.360" | 1" | 2-3/4" | 1-3/4" | 9.2 LBS |
| 2082B11 | 11 | 8.010" | 1" | 2-3/4" | 1-3/4" | 10.1 LBS |
| 2082B12 | 12 | 8.660" | 1" | 2-3/4" | 1-3/4" | 11.2 LBS |
| 2082B13 | 13 | 9.310" | 1-1/4" | 3-1/4" | 2" | 15.0 LBS |
| 2082B14 | 14 | 9.960" | 1-1/4" | 3-1/4" | 2" | 15.8 LBS |
| 2082B15 | 15 | 10.610" | 1-3/16" | 3-1/4" | 2" | 17.8 LBS |
| 2082B16 | 16 | 11.250" | 1-3/16" | 3-1/4" | 2" | 19.3 LBS |
| 2082B17 | 17 | 11.900" | 1-3/16" | 3-1/4" | 2" | 21.4 LBS |
| 2082B18 | 18 | 12.540" | 1-3/16" | 3-1/4" | 2" | 22.9 LBS |
| 19 | 13.190" | 1-3/16" | 3-1/4" | 2" | 24.4 LBS | |
| 20 | 13.830" | 1-3/16" | 3-1/4" | 2" | 26.7 LBS | |
| 21 | 14.470" | 1-1/4" | 3-1/4" | 2" | 28.4 LBS | |
| 22 | 15.110" | 1-1/4" | 3-1/4" | 2" | 30.8 LBS | |
| 23 | 15.750" | 1-1/4" | 3-1/4" | 2" | 32.2 LBS | |
| 24 | 16.390" | 1-1/4" | 3-1/4" | 2" | 34.9 LBS | |
| 25 | 17.030" | 1-1/4" | 3-1/4" | 2" |
37.8 LBS |
|
| 26 | 17.670" | 1-1/4" | 3-1/2" | 2" |
41.5 LBS |
|
| 28 | 18.950" | 1-1/4" | 3-1/2" | 2" | 47.7 LBS | |
| 30 | 20.230" | 1-1/4" | 3-1/2" | 2" | 54.5 LBS |
Email:
See What All We Offer "Here"!
- Chain Size: C2082H
- Pitch (P): 2.000"
- Roller Width (W): 0.625"
- Roller Diameter (R): 1.125"
- Plate Height (H): 0.935"
- Plate Thickness (T): 0.156"
- Pin Diameter (D): 0.312"
- Chain Width (F): 1.398"
- Connecting Link Width (G): 1.512"
- Tensile Strength: 14,650 LBS
- Weight: 2.367 LBS/ FT
