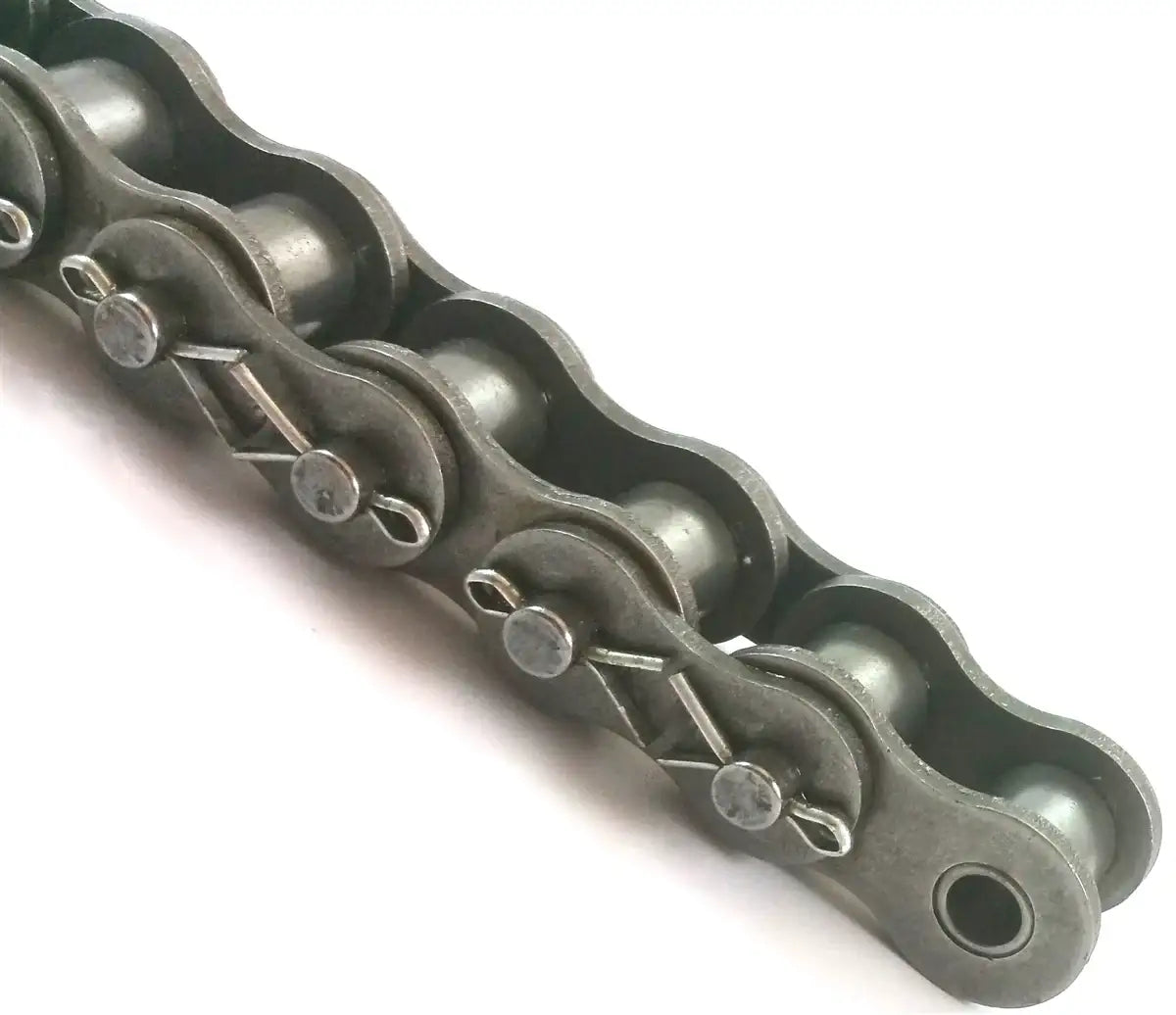

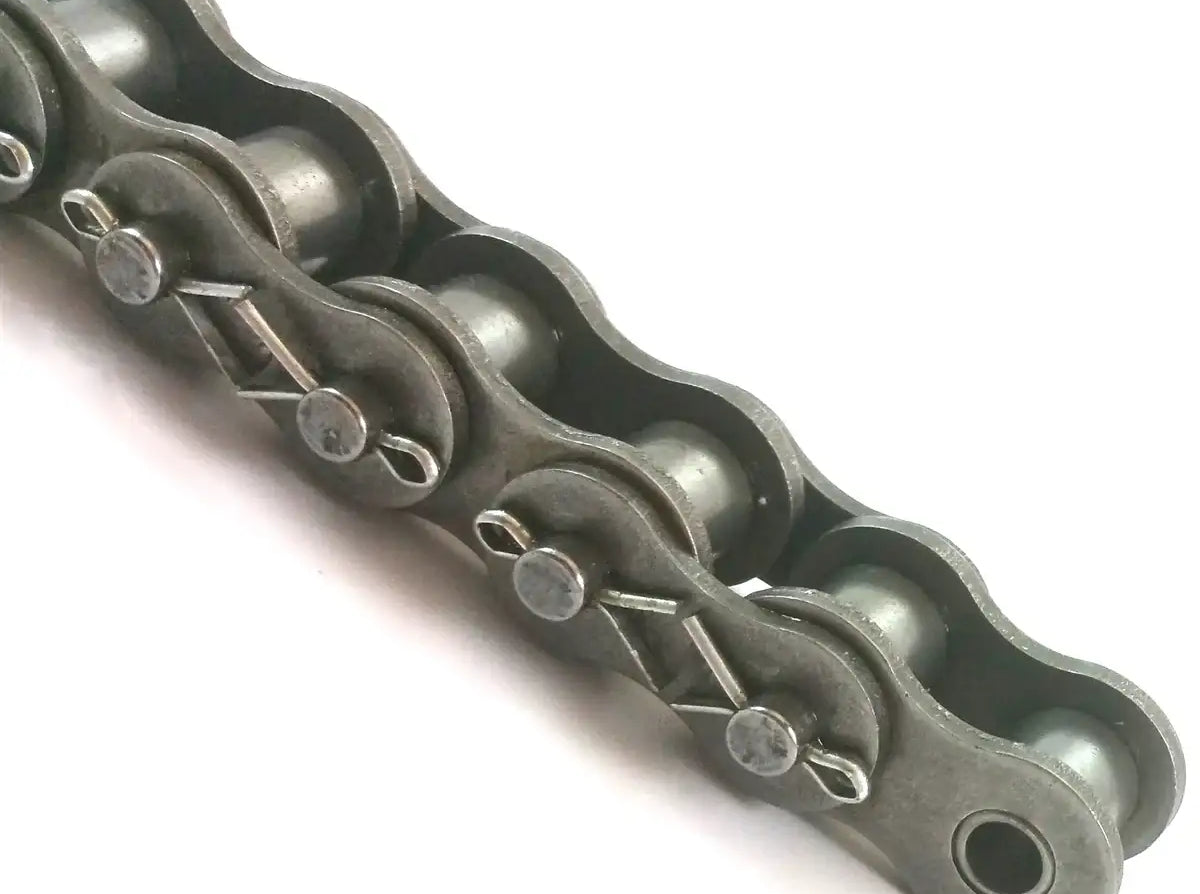

General Duty Plus #80 Cottered Roller Chain - 10ft Box

General Duty Plus #80 cottered roller chain is a high quality ANSI standard roller chain. This #80 cottered roller chain features heat-treated and shot peened components including the pins, side plates, rollers, and bushings. Doing this to a roller chain greatly increases the strength, working life, and durability of a chain. General Duty Plus #80 cottered roller chain has a tensile strength of 17,000lbs and is constructed of high quality carbon steel. #80 cottered roller chain is commonly supplied in 10ft boxes but is also available on 50ft reels, 100ft reels, and as custom lengths per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.

#80 Cottered Roller Chain Dimensions

• Chain Size: #80
• Tensile Strength: 17,000lbs
• Pitch (P): 1.000"
• Roller Width (W): 0.625"
• Roller Diameter (R): 0.625"
• Link Plate Height (H): 0.950"
• Link Plate Thickness (T): 0.125"
• Pin Diameter (D): 0.312"
• Specifications Met: ANSI Standards
