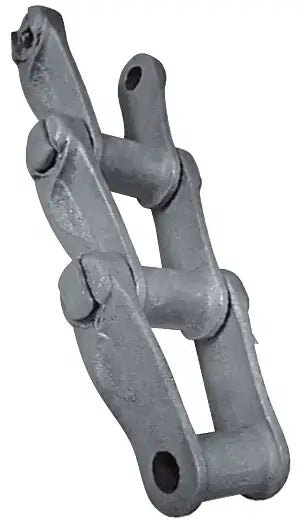

H60 Chain Premium H60 Chain

Specialty Chain > Engineering Class Chains > More Engineer Class Chains > H Class Chains > H60 Mill Chain

H60 Chain

Note: Custom Cut to Length Chain Also Available
SKU: H60-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715165913455" , "metafield_value":""}]
H60 Chain Features
H60 Chain Specifications
H60 chain is manufactured out of Pearlitic Malleable iron, and is a common in-stock item. This H60 chain is a heavy duty, extremely durable, and high quality mill duty chain with a tensile strength of 9,450 LBS. Our H-Series chains are manufactured to perform and hold up in heavy drives, transfer conveyors, as well as abrasive atmospheres. The sidebars of H60 chain feature a strengthened cross section providing an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. In addition to the H60 chain we also have a full line of attachments and H60 sprockets for sale. For more information or o get a quote please contact us and we will be happy to assist you.

Dimensions:
H60 Chain
  • Chain Size: H60
  • Pitch: 2.308"
  • Pin Diameter (E): 0.312"
  • Height of Sidebar (F): 0.75"
  • Diameter of Barrel (H): 0.75"
  • Maximum Allowable Sprocket Face (A): 0.75"
  • Bearing Length (X): 1.50"
  • Maximum Recommended Working Load: 1,560 LBS
  • Overall Width Cottered (C2): 2.90"
  • Overall Width Riveted (C1): 2.62"
  • Head of Pin to Center Line (J): 1.25"
  • End of Pin To Center Line Cottered (K): 1.38"
  • End of Pin To Center Line Riveted (L): 1.38"
  • Average Ultimate Strength: 9,450 LBS
  • Links Per 10ft: 52
  • Weight Per ft: 2.1 LBS
  • Note: Available In Riveted and Cottered Construction

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: H60
  • Pitch: 2.308"
  • Pin Diameter (E): 0.312"
  • Height of Sidebar (F): 0.75"
  • Diameter of Barrel (H): 0.75"
  • Maximum Allowable Sprocket Face (A): 0.75"
  • Bearing Length (X): 1.50"
  • Maximum Recommended Working Load: 1,560 LBS
  • Overall Width Cottered (C2): 2.90"
  • Overall Width Riveted (C1): 2.62"
  • Head of Pin to Center Line (J): 1.25"
  • End of Pin To Center Line Cottered (K): 1.38"
  • End of Pin To Center Line Riveted (L): 1.38"
  • Average Ultimate Strength: 9,450 LBS
  • Links Per 10ft: 52
  • Weight Per ft: 2.1 LBS
  • Note: Available In Riveted and Cottered Construction
