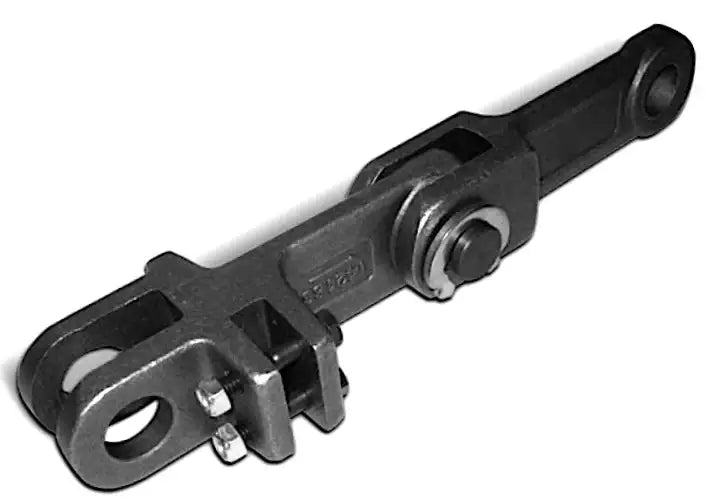

F-142262 Chain - Forged Link Chain

F-142262 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Specifically, this forged link chain is designed for double-strand assemblies. These chains have a forged "double-clevis" which a scraper can easily be attached to with a u-bolt or standard fasteners. The chain allows some built-in clearance between strands which gets rid of any potential problems that may be associated with a mismatch. Double strand assemblies allow for more discharge in conveying applications that have sticky materials. Typically F142262 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high-strength and extreme durability of F-142262 chain make it an ever-growing option for conveying applications. What separates this forge link chain is various heat-treat processes and the material options available.

• TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
• CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
• CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

We also supply F-142262 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F142262 Chain Dimensions

• Chain Size: F-142262
• Pitch (P): 142mm
• Dimension (T): 62mm
• Dimension (C): 50mm
• Dimension (S): 28mm
• Dimension (Z): 87mm
• Dimension (G): 13mm
• Bolt-Hole Diameter (D): 25mm
• TN Option Breaking Load: 440 kN
• CN Option Breaking Load: 470 kN
• CD Option Breaking Load: 790 kN
• Weight: 16.70 kG/ M

F-142262 Pin Options

Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip	Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
Type HD/45/28S - Headed Pin With Collar and S Cotter Retention	Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention	Type HD/28S - Headed Pin With Washer and S Cotter Retention

F-142262 Chain Attachments
