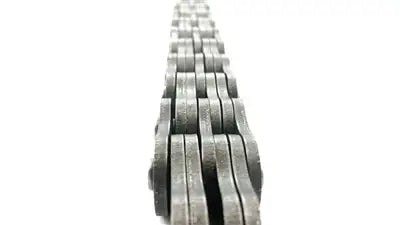

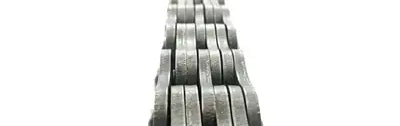

LH1034 Leaf Chain | 3X4 Chain 15.875mm Pitch - 10ft Box

Designed for heavy-duty applications, the LH1034 leaf chain delivers reliable strength and performance even under demanding conditions. Here's what makes it stand out:

• Built for Tough Jobs: Exceeds the capacity of LL and AL series chains and is ready for the most demanding lifting applications.
• ANSI and ISO compliant: Manufactured to ANSI and ISO dimensional standards.
• Premium Materials & Manufacturing: High-grade steel components meticulously crafted for long life and smooth operation.
• Enhanced Strength: Precision-engineered and featuring a robust 3x4 lacing design, the LH1034 delivers exceptional load capacity for even the most demanding applications.
• Ready for Installation: Factory pre-loaded and compatible with other brands, minimizing downtime and installation hassle.

Thanks to the additional plates, the LH1034 leaf chain is the perfect choice for demanding applications where power and reliability are essential. For more information or pricing, contact our customer support team.

LH1034 Chain Dimensions

• Chain Size: LH1034
• Lacing: 3X4
• Pitch (P): 15.875mm
• Pin Diameter (Dp): 5.94mm
• Plate Height (Hi): 14.75mm
• Plate Thickness (S): 2.40mm
• Pin Length (A1): 19.40mm
• Tensile Strength: 62.3 kN
• Weight: 1.61 Kg/m
