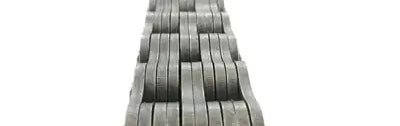

LH2046 Leaf Chain | LH2046 Chain - 4X6 Leaf Chain
Login to Request a Quote
Our LH2046 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is a 4x6 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH2046 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH2046 chain further enhance its strength and reliability. The inclusion of extra plates in the LH2046 chain provides a fantastic cost-to-breaking strength ratio. Our LH2046 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH2046 chain, please contact our customer support team, and we will be happy to assist you!
LH2046 Chain Dimensions
- Chain Size: LH2046
- Lacing: 4X6
- Pitch (P): 31.75mm
- Pin Diameter (Dp): 11.10mm
- Plate Height (Hi): 29.60mm
- Plate Thickness (S): 4.70mm
- Pin Length (A1): 54.15mm
- Tensile Strength: 273.0 kN
- Weight: 8.60 Kg/m
- Chain Size: LH2046
- Lacing: 4X6
- Pitch (P): 31.75mm
- Pin Diameter (Dp): 11.10mm
- Plate Height (Hi): 29.60mm
- Plate Thickness (S): 4.70mm
- Pin Length (A1): 54.15mm
- Tensile Strength: 273.0 kN
- Weight: 8.60 Kg/m
