Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

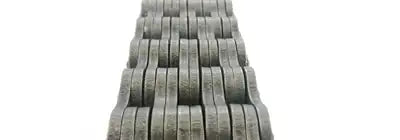

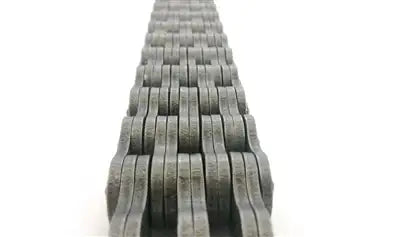

LH2466 Leaf Chain | 6X6 Chain 38.1mm Pitch - 10ft Box
Login to Request a Quote
The LH2466 leaf chain stands out within ANSI and ISO dimensional standards, representing a robust 6x6 lacing leaf chain solution. Crafted for heavy-duty applications, the LH series exceeds load requirements compared to LL or AL series chains. What distinguishes our LH2466 chain is the utilization of top-tier carbon and alloy steel components, subject to specific heat treatments, precise tolerances, and factory pre-loading. This meticulous combination yields an LH2466 leaf chain that delivers exceptional performance and extended durability.
Highlighted by its inclusion of extra plates, the LH2466 chain boasts an impressive cost-to-breaking strength ratio. Moreover, this leaf chain seamlessly exchanges with counterparts from different brands and manufacturers.
For additional information or to request a quote for the LH2466 chain, feel free to contact our customer support team. We are dedicated to assisting you with your specific requirements!
LH2466 Chain Dimensions
- Chain Size: LH2466
- Lacing: 6X6
- Pitch (P): 38.10mm
- Pin Diameter (Dp): 12.68mm
- Plate Height (Hi): 36.00mm
- Plate Thickness (S): 5.57mm
- Pin Length (A1): 75.25mm
- Tensile Strength: 648.0 kN
- Weight: 14.40 Kg/m
- Chain Size: LH2466
- Lacing: 6X6
- Pitch (P): 38.10mm
- Pin Diameter (Dp): 12.68mm
- Plate Height (Hi): 36.00mm
- Plate Thickness (S): 5.57mm
- Pin Length (A1): 75.25mm
- Tensile Strength: 648.0 kN
- Weight: 14.40 Kg/m
