Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

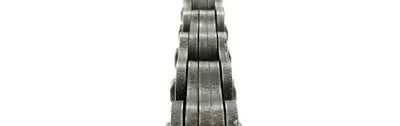

LH2823 Leaf Chain | 2X3 Chain 44.45mm Pitch - 10ft Box
Login to Request a Quote

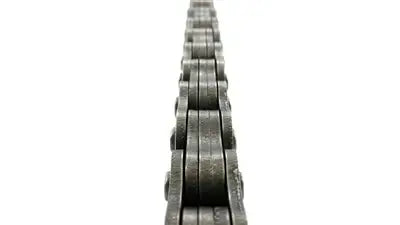

The LH2823 leaf chain adheres to ANSI and ISO dimensional standards, presenting a robust 2x3 lacing leaf chain solution. Tailored for heavy-duty applications, the LH series surpasses load requirements compared to LL or AL series chains. What distinguishes our LH2823 chain is the utilization of superior-grade carbon and alloy steel components, coupled with precise heat treatments, stringent tolerances, and factory pre-loading. This unique blend results in an LH2823 leaf chain that delivers outstanding performance and prolonged durability. The incorporation of extra plates enhances the cost-to-breaking strength ratio, making the LH2823 chain an economically efficient choice.
Our LH2823 leaf chain seamlessly interchanges with counterparts from different brands and manufacturers. For more details or to request a quote for the LH0823 chain, feel free to reach out to our customer support team. We are here to provide assistance and ensure your satisfaction!
LH2823 Chain Dimensions
- Chain Size: LH2823
- Lacing: 2X3
- Pitch (P): 44.45mm
- Pin Diameter (Dp): 14.28mm
- Plate Height (Hi): 42.00mm
- Plate Thickness (S): 6.27mm
- Pin Length (A1): 39.00mm
- Tensile Strength: 263.9 kN
- Weight: 8.10 Kg/m
- Chain Size: LH2823
- Lacing: 2X3
- Pitch (P): 44.45mm
- Pin Diameter (Dp): 14.28mm
- Plate Height (Hi): 42.00mm
- Plate Thickness (S): 6.27mm
- Pin Length (A1): 39.00mm
- Tensile Strength: 263.9 kN
- Weight: 8.10 Kg/m
