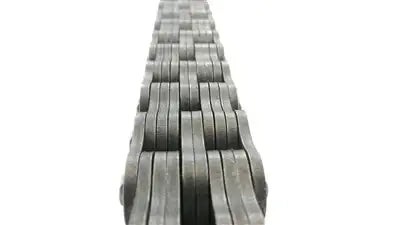

LH2846 Leaf Chain | 4X6 Chain 44.45mm Pitch - 10ft Box
Login to Request a Quote
Our LH2846 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is a 4x6 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH2846 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH2846 chain further enhance its strength and reliability. The inclusion of extra plates in the LH2846 chain provides a fantastic cost-to-breaking strength ratio. Our LH2846 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH2846 chain, please contact our customer support team, and we will be happy to assist you!
LH2846 Chain Dimensions
- Chain Size: LH2846
- Lacing: 4X6
- Pitch (P): 44.45mm
- Pin Diameter (Dp): 14.28mm
- Plate Height (Hi): 42.00mm
- Plate Thickness (S): 6.27mm
- Pin Length (A1): 71.95mm
- Tensile Strength: 526.7 kN
- Weight: 15.80 Kg/m
- Chain Size: LH2846
- Lacing: 4X6
- Pitch (P): 44.45mm
- Pin Diameter (Dp): 14.28mm
- Plate Height (Hi): 42.00mm
- Plate Thickness (S): 6.27mm
- Pin Length (A1): 71.95mm
- Tensile Strength: 526.7 kN
- Weight: 15.80 Kg/m
