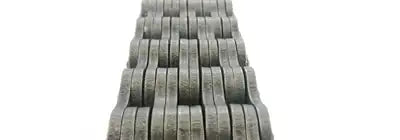

LH2866 Leaf Chain | 6X6 Chain 44.45mm Pitch - 10ft Box
Login to Request a Quote
The LH2866 leaf chain adheres to ANSI and ISO dimensional standards, presenting a robust 6x6 lacing leaf chain solution. Tailored for heavy-duty applications, the LH series surpasses load requirements compared to LL or AL series chains. What distinguishes our LH2866 chain is the utilization of superior-grade carbon and alloy steel components, coupled with precise heat treatments, stringent tolerances, and factory pre-loading. This unique blend results in an LH2866 leaf chain that delivers outstanding performance and prolonged durability. The incorporation of extra plates enhances the cost-to-breaking strength ratio, making the LH2866 chain an economically efficient choice.
Our LH2866 leaf chain seamlessly interchanges with counterparts from different brands and manufacturers. For more details or to request a quote for the LH0823 chain, feel free to reach out to our customer support team. We are here to provide assistance and ensure your satisfaction!
LH2866 Chain Dimensions
- Chain Size: LH2866
- Lacing: 6X6
- Pitch (P): 44.45mm
- Pin Diameter (Dp): 14.28mm
- Plate Height (Hi): 42.00mm
- Plate Thickness (S): 6.27mm
- Pin Length (A1): 85.35mm
- Tensile Strength: 788.4 kN
- Weight: 18.84 Kg/m
- Chain Size: LH2866
- Lacing: 6X6
- Pitch (P): 44.45mm
- Pin Diameter (Dp): 14.28mm
- Plate Height (Hi): 42.00mm
- Plate Thickness (S): 6.27mm
- Pin Length (A1): 85.35mm
- Tensile Strength: 788.4 kN
- Weight: 18.84 Kg/m
