Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

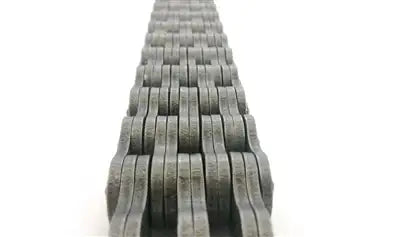

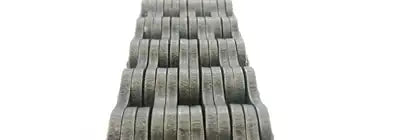

LH3266 Leaf Chain | 6X6 Chain 50.8mm Pitch - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$1,964.99
SKU: LH3266-LEAF-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
LH3266 Leaf Chain | 6X6 Chain 50.8mm Pitch - 10ft Box Features
LH3266 Leaf Chain | 6X6 Chain 50.8mm Pitch - 10ft Box Specifications
LH3266 leaf chain is manufactured to ANSI and ISO dimensional standards and is a 6X6 lacing leaf chain. LH series leaf chains are heavy-duty and designed for higher load requirements than LL or AL series chains. What separates our LH3266 chain from others is our use of high-grade carbon and alloy steel components, specific heat treatments, precision tolerances, and factory pre-loading. The combination creates an LH3266 leaf chain capable of exceptional performance and durability! LH3266 chain provides a fantastic cost-to-breaking strength ratio due to the inclusion of extra plates. Additionally, our LH3266 leaf chain directly interchanges with other brands and manufacturers. For additional information or to get a quote on the LH3266 chain, contact our customer support team, and we will be happy to assist you!
LH3266 Chain Dimensions
- Chain Size: LH3266
- Lacing: 6X6
- Pitch (P): 50.80mm
- Pin Diameter (Dp): 17.46mm
- Plate Height (Hi): 48.00mm
- Plate Thickness (S): 7.17mm
- Pin Length (A1): 94.35mm
- Tensile Strength: 993.6 kN
- Weight: 23.90 Kg/m
- Chain Size: LH3266
- Lacing: 6X6
- Pitch (P): 50.80mm
- Pin Diameter (Dp): 17.46mm
- Plate Height (Hi): 48.00mm
- Plate Thickness (S): 7.17mm
- Pin Length (A1): 94.35mm
- Tensile Strength: 993.6 kN
- Weight: 23.90 Kg/m
