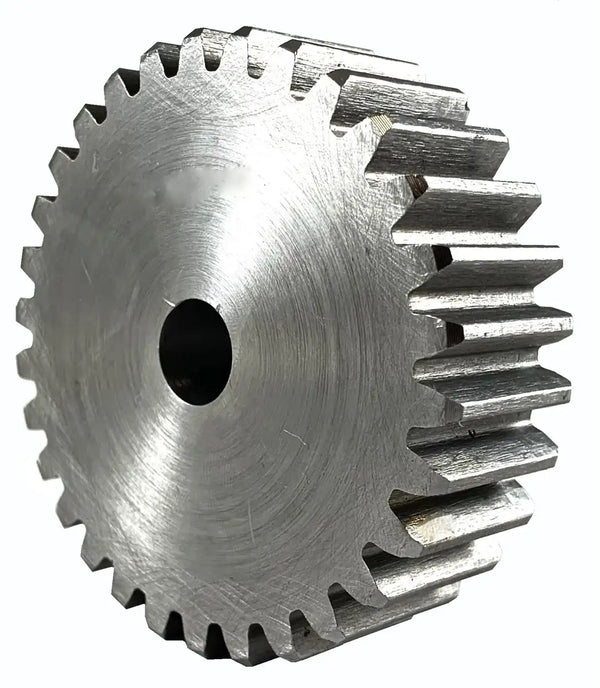

M2B62 Gear - M2B62 Metric Spur Gear
Note:
Custom Cut to Length Chain Also Available
SKU: N-7842-GE-M2B62
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
M2B62 Gear - M2B62 Metric Spur Gear Features
M2B62 Gear - M2B62 Metric Spur Gear Specifications
M2B62 spur gear is a module 2, 62-tooth B hub type metric gear that is 128mm in diameter. Our M2B62 gear is manufactured using high-strength C1045 steel which is the optimal material for spur gears, it is manufactured to the standard metric dimensions so it interchanges with other brands, and can be supplied as a plain stock bore or finished out to a specific bore size upon request. We also supply metric gear rack for M2B62 gears, and high-grade gear oil to increase performance and longevity of the gear. For additional information or to get a quote on M2B62 metric spur gears please contact us as (407) 347-3519 or email sales@usarollerchain.com and we will be happy to assist you.
M2B62 Gear Dimensions
- Gear Size: M2B62
- Tooth Count: 62
- Dimension (De): 128mm
- Dimension (Dp): 124mm
- Dimension (d): 80mm
- Dimension (D): 20mm
- Max Torque (Nm): 107.0
- Weight: 2.42 Kg
- Gear Size: M2B62
- Tooth Count: 62
- Dimension (De): 128mm
- Dimension (Dp): 124mm
- Dimension (d): 80mm
- Dimension (D): 20mm
- Max Torque (Nm): 107.0
- Weight: 2.42 Kg
