Power Transmission > Gears and Gear Racks > Metric Spur Gear Rack

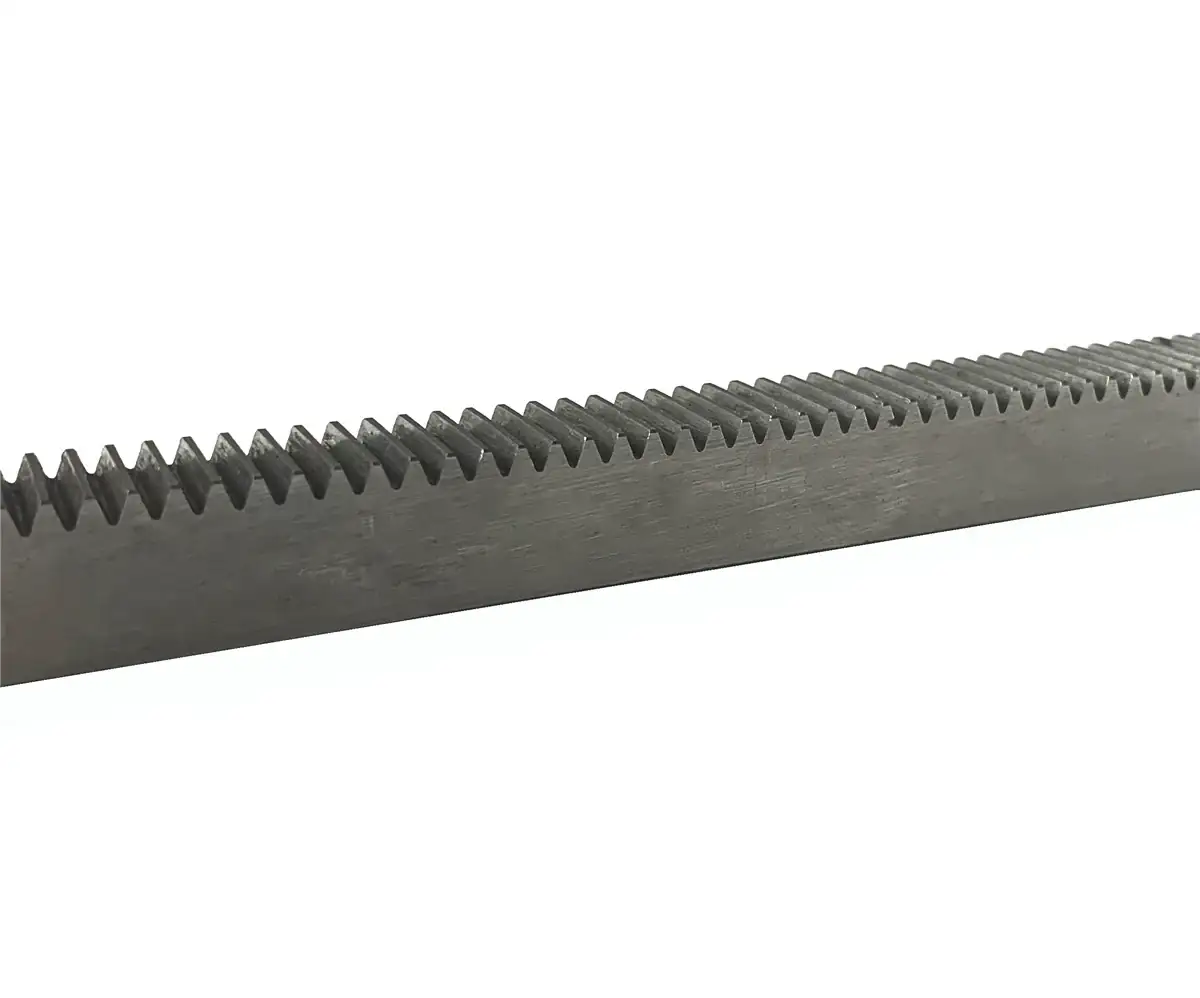

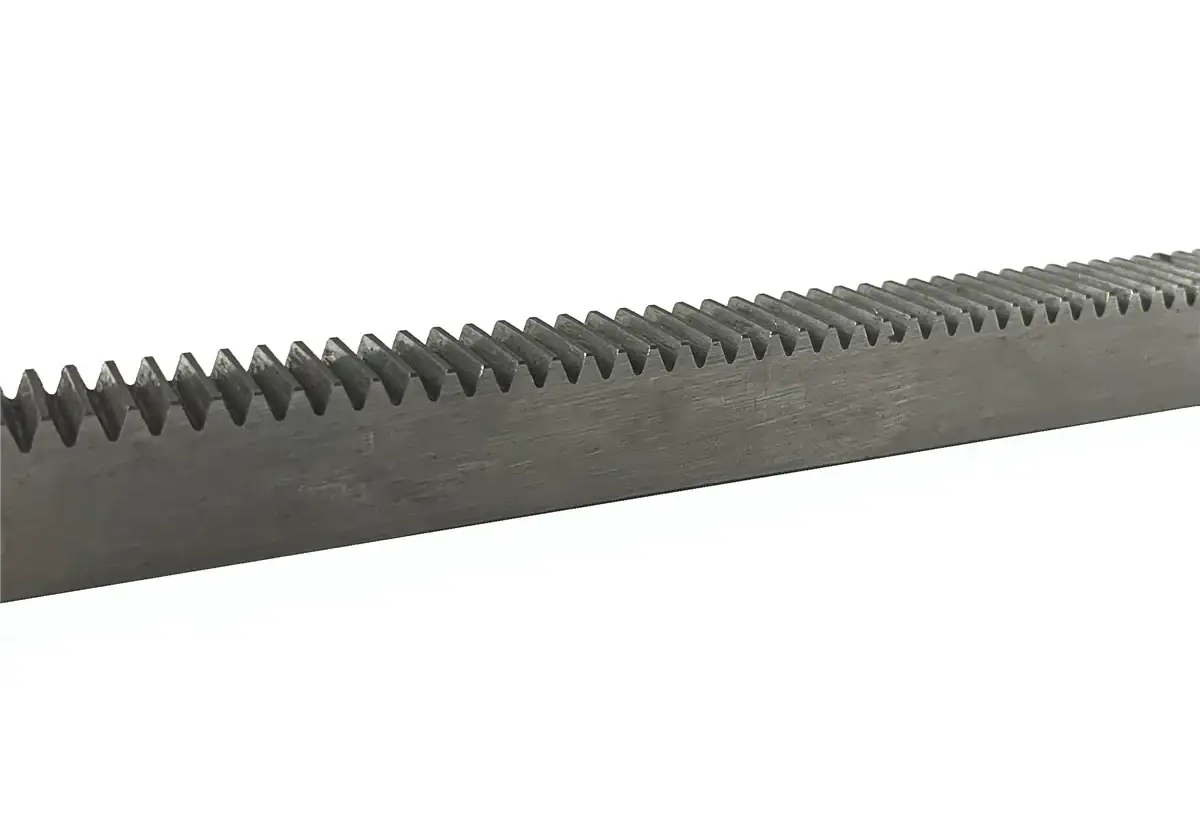

M4X40X500 Gear Rack | 500mm Metric Gear Rack
Note:
Custom Cut to Length Chain Also Available
SKU: N-7842-GE-M4X40X500
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
M4X40X500 Gear Rack | 500mm Metric Gear Rack Features
M4X40X500 Gear Rack | 500mm Metric Gear Rack Specifications
M4X40X500 gear rack is manufactured from premium C1045 steel to metric Module 4 dimensions and is 500mm in length. Our precision metric gear racks are designed to function smoother and longer than the other brands out there. For more information or to get a quote for M4X40X500 metric gear rack please contact us and we will be happy to assist you.
M4X40X500 Gear Rack Dimensions
- Part #: M4X40X500
- Dimension (hp): 36mm
- Dimension (he X S): 40mm X 40mm
- Weight: 5.50 kG
- Pitch: 12.5664mm
- Dimension (S): 0.8mm
- Amount of Teeth: 40
- Dimension (Lr): 502.66mm
- Part #: M4X40X500
- Dimension (hp): 36mm
- Dimension (he X S): 40mm X 40mm
- Weight: 5.50 kG
- Pitch: 12.5664mm
- Dimension (S): 0.8mm
- Amount of Teeth: 40
- Dimension (Lr): 502.66mm
