50 HP Rotary Phase Converter Motor - 12 Lead Dual Voltage
Note:
Custom Cut to Length Chain Also Available
$2,679.99
SKU: PC3-CI-TF-326T-4-BR-E-50
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
50 HP Rotary Phase Converter Motor - 12 Lead Dual Voltage Features
50 HP Rotary Phase Converter Motor - 12 Lead Dual Voltage Specifications

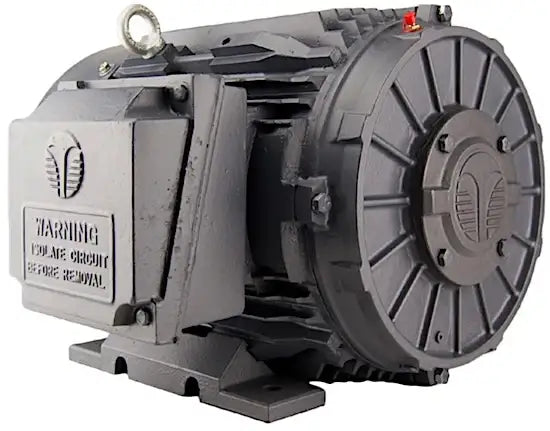

Our premium 50 HP rotary phase converter motor with 12 lead single-voltage configurations is designated by part # PC3-CI-TF-326T-4-BR-E-50 and sets the bar in terms of performance, lifespan, and durability! Encapsulated in a high-strength IP55-rated cast iron housing that is totally enclosed and fan-cooled (TEFC), this 50 horsepower phase converter motor has dual oversized bearings, double-lip oil seals, one-way brass condensation drains, and an industry-leading 24-month warranty. The PC3-CI-TF-326T-4-BR-E-50 motor is also F1, F2, and F3 field convertible. For additional information or to get a quote from our customer service team on our premium 50 hp rotary phase converter motor, contact us today, and we will gladly assist you!
- Download Drawing
- Download Spec Sheet
50 HP Rotary Phase Converter Motor Specs
- Part #: PC3-CI-TF-326T-4-BR-E-50
- Horse Power: 50
- Frame Size: 326T
- Body: T
- Poles: 4
- RPM: 1800
- Voltage: 230/ 460
- Rating: IP55
- Weight: 600.87 LBS
- Download Drawing - Download Spec Sheet- Part #: PC3-CI-TF-326T-4-BR-E-50
- Horse Power: 50
- Frame Size: 326T
- Body: T
- Poles: 4
- RPM: 1800
- Voltage: 230/ 460
- Rating: IP55
- Weight: 600.87 LBS
