F4S-S2-203RE Bearing | SFB4-2-3/16TE Pillow Block Bearing - Expansion
F4S-S2-203RE Bearing | SFB4-2-3/16TE Pillow Block Bearing - Expansion
Note:
Custom Cut to Length Chain Also Available
Regular price
$359.99
$359.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: SFB4-2-316TE-BEARING
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

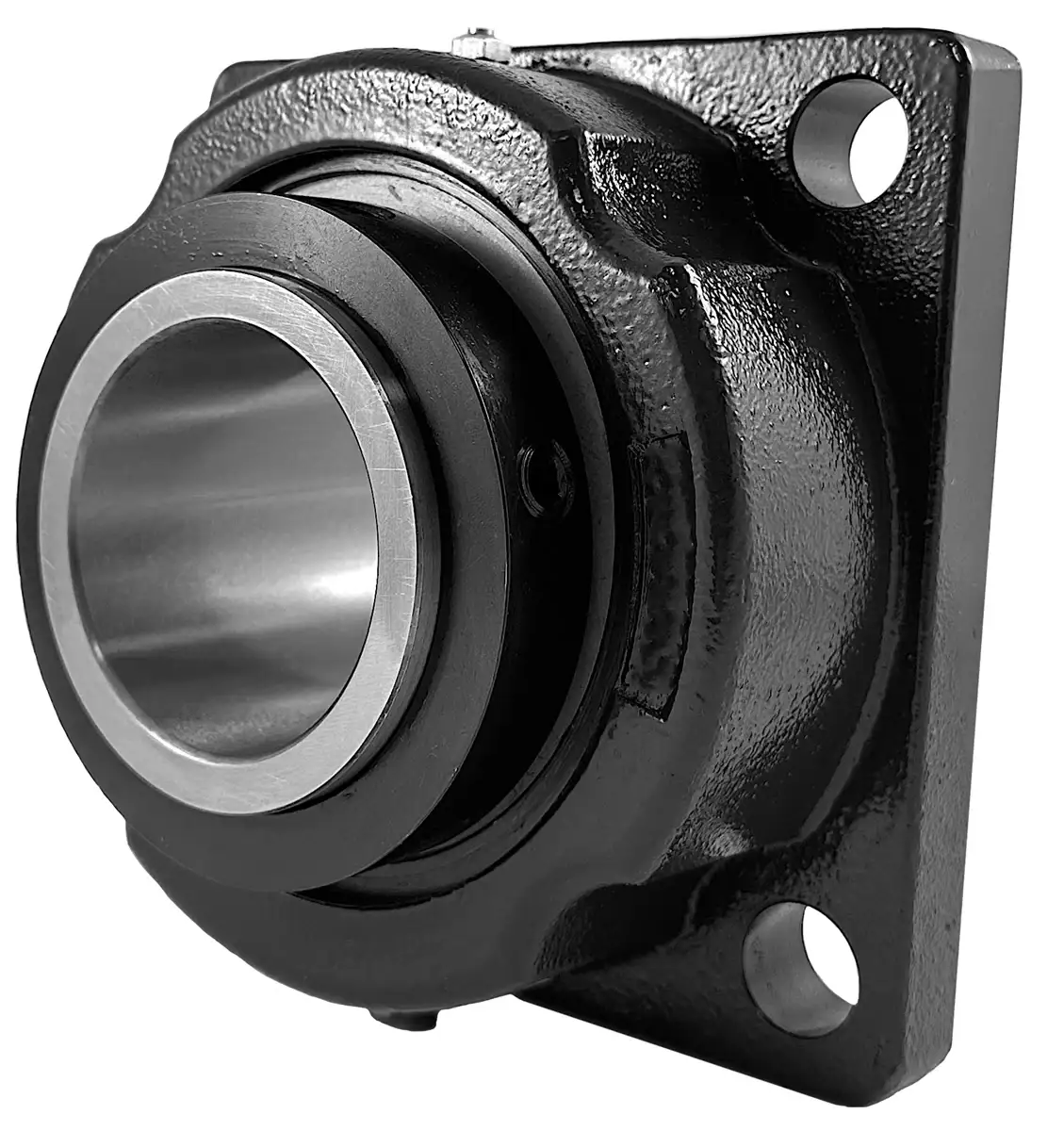

F4S-S2-203RE Bearing bearing is a four-bolt spherical pillow block expansion bearing unit with a 2-3/16" bore. Our directly interchanged SFB4-2-3/16TE pillow block bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. F4S-S2-203RE Bearing bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SFB4-2-3/16TE interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, this expansion unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFB4-2-3/16TE bearings interchange with other brands such as Dodge F4S-S2-203RE, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our F4S-S2-203RE bearing replacement, contact our customer service team, and we will be happy to assist you!
SFB4-2-3/16TE Bearing Dimensions
- Part #: SFB4-2-3/16TE
- Interchanges With: F4S-S2-203RE
- Weight: 9.27 LBS
- Dimension (d): 2-3/16"
- Dimension (A): 5.875"
- Dimension (E): 4.500"
- Dimension (C): 0.172" (+0.100"/ -0.000")
- Dimension (P): 6.375"
- Dimension (Z): 3.297" (+0.100"/ -0.000")
- Dimension (L): 2.438"
- Dimension (BL): 3.125"
- Dimension (B): 5.125"
- Dimension (K): 3.250"
- Dimension (G): 0.813"
- Bolt Hole (T): 0.709"
- Dynamic Load Capacity (Cr): 23,600 LBS
- Dynamic Load Capacity (Cr): 105.0 kN
- Static Load Capacity (Cor): 28,325 LBS
- Static Load Capacity (Cor): 126.0 kN
Feature
- Directly Interchanges With F4S-S2-203RE Bearing
- Expansion Unit
- Advanced PTFE Seals
- Self-Aligning Bearing Unit
- Tough Mild-Steel Locking Collar
- Metal ID Tag For Easy Re-Order
- Solid High-Strength Housing With Precision Foot Ends
- Bearing Cavity 33% Filled With Shell Gadus S2 V220 Grease
- 1/8" NPT Grease Fitting
- Accepts Automatic Grease Dispensers
- Pressure Relief Valve
- Grease Purge Valve Protects Seals From Over Lubrication
- Part #: SFB4-2-3/16TE
- Interchanges With: F4S-S2-203RE
- Weight: 9.27 LBS
- Dimension (d): 2-3/16"
- Dimension (A): 5.875"
- Dimension (E): 4.500"
- Dimension (C): 0.172" (+0.100"/ -0.000")
- Dimension (P): 6.375"
- Dimension (Z): 3.297" (+0.100"/ -0.000")
- Dimension (L): 2.438"
- Dimension (BL): 3.125"
- Dimension (B): 5.125"
- Dimension (K): 3.250"
- Dimension (G): 0.813"
- Bolt Hole (T): 0.709"
- Dynamic Load Capacity (Cr): 23,600 LBS
- Dynamic Load Capacity (Cr): 105.0 kN
- Static Load Capacity (Cor): 28,325 LBS
- Static Load Capacity (Cor): 126.0 kN
