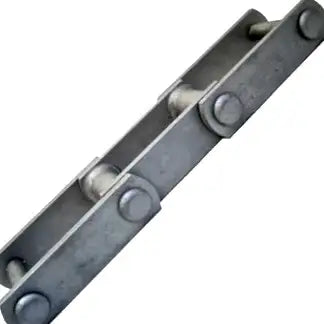

WHC110XHD Extra Heavy Duty Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Straight Sidebar Welded Steel Chain > WRC110/ WHC110 Chain

WHC110XHD Extra Heavy Duty Chain

Note: Custom Cut to Length Chain Also Available
SKU: WHC110XHD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715502866799" , "metafield_value":""}]
WHC110XHD Extra Heavy Duty Chain Features
WHC110XHD Extra Heavy Duty Chain Specifications
WHC110XHD chain is commonly found in forestry products, grain handling applications, and conveying applications. This WHC110XHD chain is a high quality, durable, and economically priced product. Something special about this chain is that each and every component is fully heat-treated and hardened to drastically increase the overall chain strength, working life, and durability. Additionally this chain features wide sidebars and heavier duty pins which increases the chain strength even more!

Dimensions:
WHC110XHD Extra Heavy Duty Chain
  • Part Number: WHC110XHD
  • Ultimate Strength: 122,000 LBS
  • Pitch (A): 6.050"
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 1/2"
  • Pin diameter (D): 1.00"
  • Overall Width (E): 4-7/8"
  • Length Of Bearing (F): 3.00"
  • Maximum Sprocket thickness (G): 1-1/2"
  • Barrel Outside Diameter (H): 1.660"
  • Links Per Foot: 2.00
  • Weight Per Foot: 11.50 LBS

We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs. Additionally we offer a full line of attachments for this chain. For pricing and availability on WHC110XHD chain, attachments, or sprockets, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WHC110XHD
  • Ultimate Strength: 122,000 LBS
  • Pitch (A): 6.050"
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 1/2"
  • Pin diameter (D): 1.00"
  • Overall Width (E): 4-7/8"
  • Length Of Bearing (F): 3.00"
  • Maximum Sprocket thickness (G): 1-1/2"
  • Barrel Outside Diameter (H): 1.660"
  • Links Per Foot: 2.00
  • Weight Per Foot: 11.50 LBS
