WHX5157 Chain Steel Drag Chain
WHX5157 Chain (Drag Chain)
WHX5157 Chain Steel Drag Chain
WHX5157 Chain (Drag Chain)

Specialty Chain > Engineering Class Chains > More Engineer Class Chains > Cast and Steel Fabricated Drag Chains > 5157 Chain

WHX5157 Chain (Drag Chain)

Note: Custom Cut to Length Chain Also Available
SKU: WHX5157-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715504243055" , "metafield_value":""}]
WHX5157 Chain (Drag Chain) Features
WHX5157 Chain (Drag Chain) Specifications

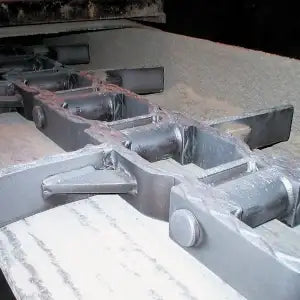

WHX5157 chain is a heavy-duty steel fabricated steel drag chain that features an 18,200 LB working load. This chain is made to handle the most abrasive applications by having hardened surfaces, square edges, and induction hardened pins. Heat treating the surfaces makes the chain have a much higher wear life, while induction hardened pins provide the benefits of a thru-hardened pin while having a higher resistance to abrasion. This WHX5157 chain is engineered and manufactured to provide the maximum strength and the longest wear life. We also offer a full line of high quality WHX5157 sprockets. For more information or to get a quote please contact us and we will be happy to assist you.

WHX5157 Chain Dimensions

WHX5157 Chain (Drag Chain)
  • Chain Size: WHX5157
  • Pitch: 6.05"
  • Overall Width (A): 6.875"
  • Inside Width (L): 3.000"
  • Pin Diameter (G): 1.125"
  • Barrel Diameter (D): 1.75"
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.625"
  • Flight Width: 8" - 21"
  • Rated Working Load: 18,200 LBS
  • Breaking Load: 175,000 LBS
  • Chain Size: WHX5157
  • Pitch: 6.05"
  • Overall Width (A): 6.875"
  • Inside Width (L): 3.000"
  • Pin Diameter (G): 1.125"
  • Barrel Diameter (D): 1.75"
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.625"
  • Flight Width: 8" - 21"
  • Rated Working Load: 18,200 LBS
