Specialty Chain > Engineering Class Chains > Welded Steel Chain > Straight Sidebar Welded Steel Chain > WRC132/ WHC132 Chain

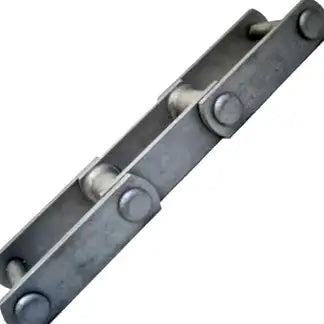

WRC132 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: WRC132-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
WRC132 Chain Features
WRC132 Chain Specifications
Part Number: WRC132 Ultimate Strength: 85,500 LBS Pitch (A): 6.050" Sidebar Height (B): 2.00" Sidebar Thickness (C): 1/2" Pin diameter (D): 1.00" Overall Width (E): 6-1/4" Length Of Bearing (F): 4.437" Maximum Sprocket thickness (G): 3-1/8" Barrel Outside Diameter (H): 1.660" Links Per Foot: 2.00 Weight Per Foot: 13.00 LBS
We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs.
Select the image below to view some of the standard sprockets offered for this chain.
Additionally we offer a full line of attachments for this chain and can assemble them onto the chain in any configuration needed. For pricing and availability on WRC132 chain, attachments, or sprockets, please contact us.
Email:
Part Number: WRC132 Ultimate Strength: 85,500 LBS Pitch (A): 6.050" Sidebar Height (B): 2.00" Sidebar Thickness (C): 1/2" Pin diameter (D): 1.00" Overall Width (E): 6-1/4" Length Of Bearing (F): 4.437" Maximum Sprocket thickness (G): 3-1/8" Barrel Outside Diameter (H): 1.660" Links Per Foot: 2.00 Weight Per Foot: 13.00 LBS
