A2800 Chain

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > A2800 Roller Chain

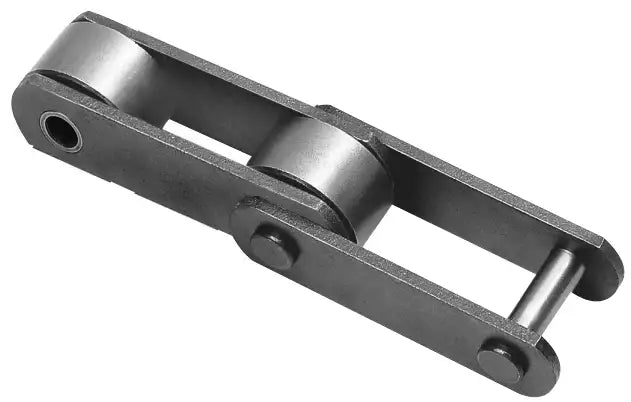

A2800 Chain

Note: Custom Cut to Length Chain Also Available
SKU: A2800-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714901213551" , "metafield_value":""}]
A2800 Chain Features
A2800 Chain Specifications
A2800 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This A2800 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality A2800 sprockets with very short lead-times. For more information or to get a quote on A2800 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
A2800 Chain
  • Chain #: A2800
  • Pitch: 8.000"
  • Pin End To CL (B): 2.63"
  • Pin Head To CL (C): 2.31"
  • Inside Width (E): 1.81"
  • Roller Diameter (D): 3.50"
  • Roller Width (L): 1.75"
  • Roller Style: V
  • Roller Material: Carbon Case-Hardened
  • Face Width: 1.63"
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Case-Hardened
  • Sidebar Height (H): 3.00"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Carbon Heat-Treated
  • Bushing Material: Carbon Case-Hardened
  • Bearing Area: 2.81"
  • Ultimate Strength: 125,000 LBS
  • Maximum Working Load: 9,800 LBS
  • Weight Per Foot: 22.5 LBS
