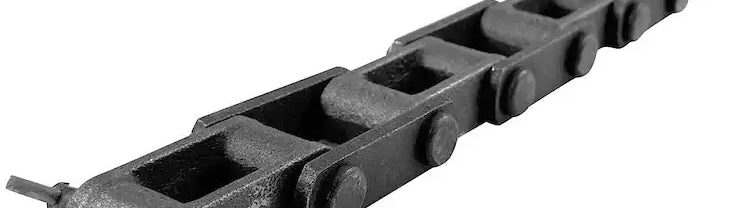

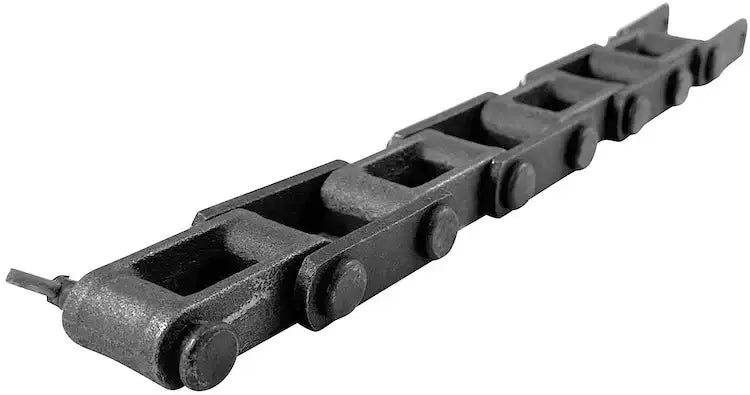

C132 Chain - 6.050" Pitch Cast Combination Chain

C132 chain is the strongest standard cast combination chain with an average tensile strength of 67,500 LB. This chain has a large 6.050" pitch (center of one pin to the center of the next) and is used in heavy-duty conveying applications. C132 chain is made with cast inner links and mild steel pin links, allowing it to operate in non-abrasive or abrasive environments. We supply the C132 chain to lumber mills, grain elevators, wastewater facilities, and more! Our superior steel grades and state-of-the-art manufacturing methods produce a C132 chain that is more capable and has a longer chain life than other alternatives in the industry. Construction-wise, the C132 chain has cast inner links (block) and mild steel pin links to benefit withstanding gritty applications while at an economical price point and upholding tensile strength. Additionally, we supply a range of C132 chain attachments, sprockets, and other accessories. For additional information or to get a quote on the C132 cast combination chain, contact our customer service team, and we will be happy to assist you! It is important to note that the C132 chain typically comes as cottered construction, but we also supply this chain as riveted; please specify which configuration you need when requesting a quote.

C132 Chain Dimensions

• Chain Size: C132
• Pitch (P): 6.050"
• Overall Width - Cottered (C): 6.750"
• Overall Width - Riveted: 6.500"
• Pin Diameter (E): 1.000"
• Sidebar Height (F): 2.000"
• Barrel Diameter (H): 1.720"
• Head of Pin to Center Line (J): 3.060"
• End of Pin to Center Line - Cottered (K): 3.380"
• End of Pin to Center Line - Riveted: 3.250"
• Sidebar Thickness (T): 0.500"
• Maximum Allowable Sprocket Face (A): 3.040"
• Barrel Length (X): 4.310"
• Tensile Strength: 67,500 LB
• Working Load: 11,250 LB
• Links Per 10ft: 20
• Weight: 13.4 LB/ FT
