C188 K1 Attachment Features
C188 K1 Attachment Specifications
C188 K1 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C188 K1 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C188 chain with K1 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

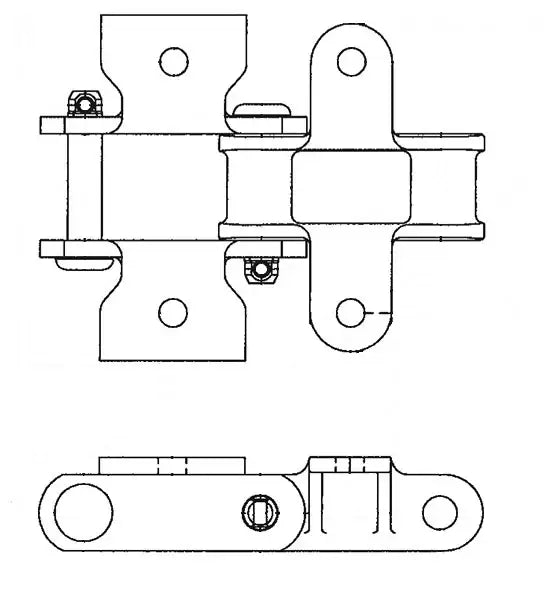

Dimensions:
C188 K1 Attachment
  • Attachment Number: C188 K1
  • Pitch: 2.609"
  • Bolt Diameter: 0.380"
  • Hole Diameter (D): 0.410"
  • Dimension (J): 0.810"
  • Dimension (K): 1.310"
  • Dimension (M): 3.750"
  • Dimension (R): 1.190"
  • Dimension (R1): 2.120"
  • Dimension (T): 0.220"
  • Dimension (T1): 0.250"
  • Dimension (W): 4.810"
  • Dimension (W1): 5.120"
  • Weight: 4.8 LBS/ FT
