Roller Chain > Roller Chain by Size > #240 Roller Chain
#240 Straight Sidebar Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: C240-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#240 Straight Sidebar Roller Chain - 10ft Box Features
#240 Straight Sidebar Roller Chain - 10ft Box Specifications

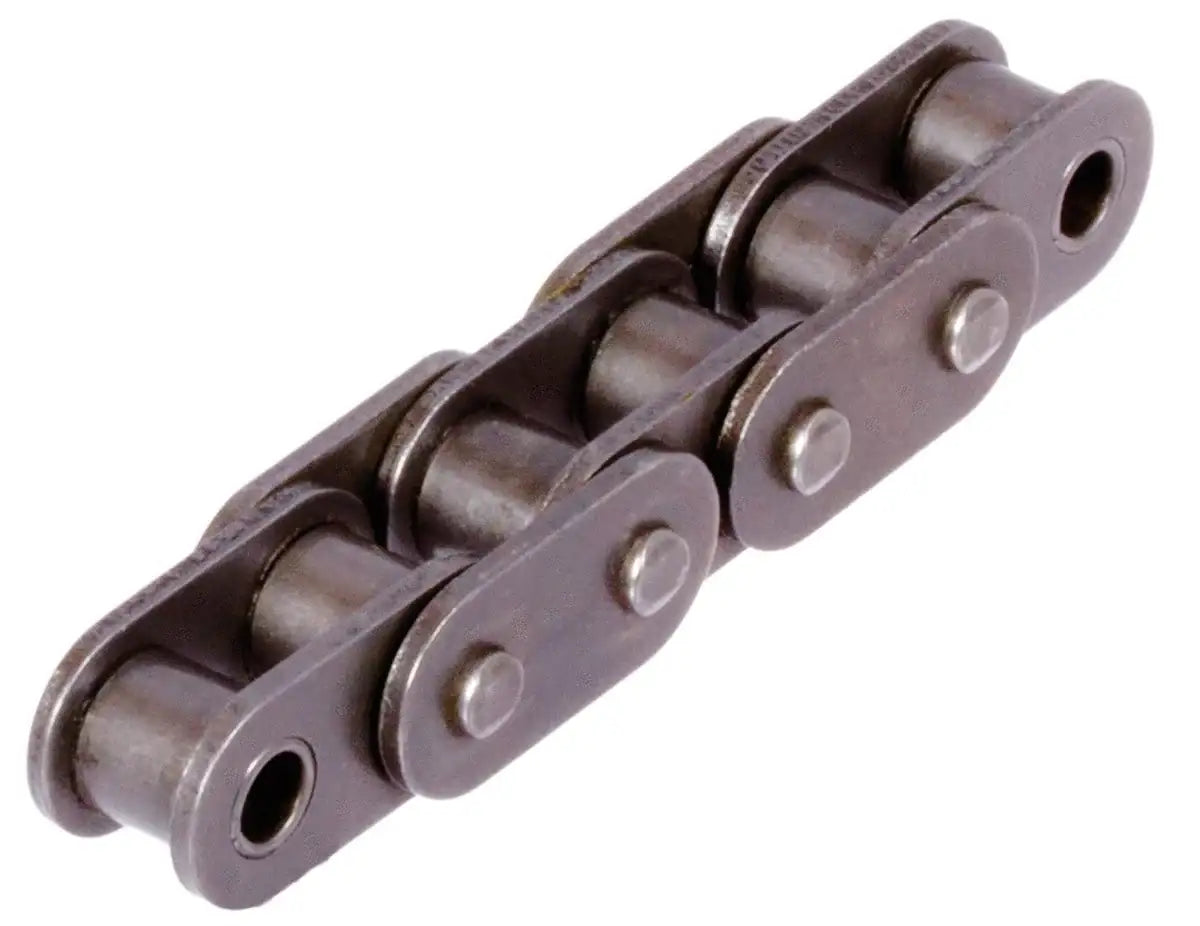

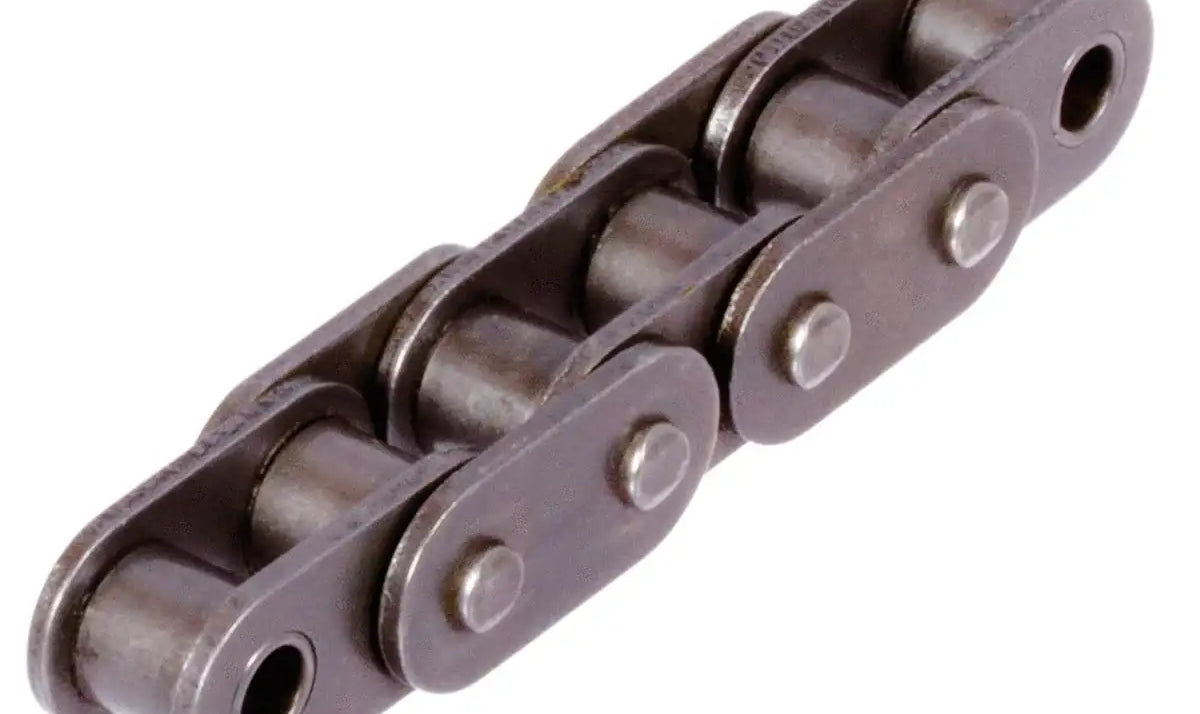

C240 Straight Sidebar Roller Chain

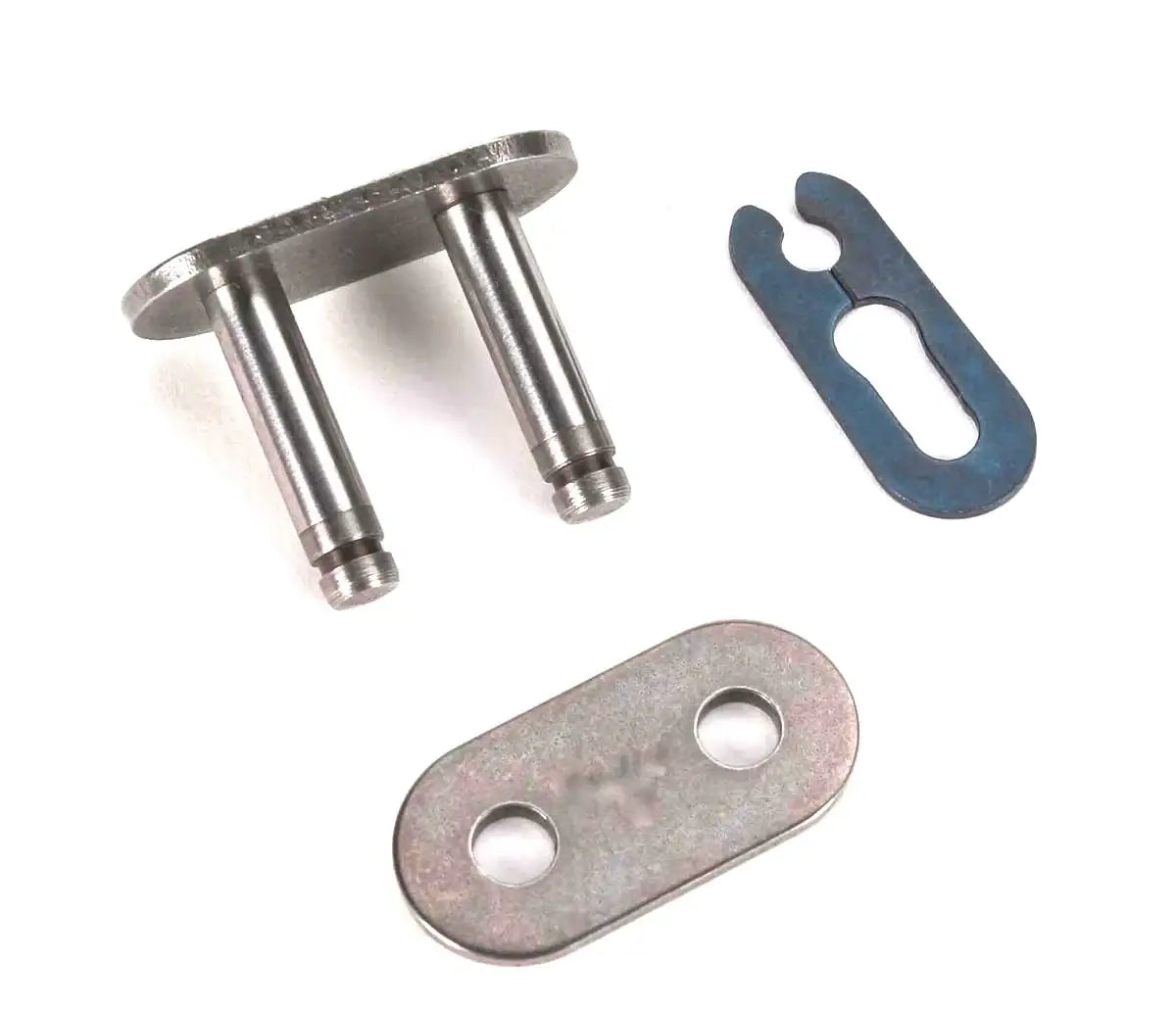

This #240 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #240 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. For pricing and availability please contact us.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
This #240 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #240 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. For pricing and availability please contact us.
Dimensions:
- Chain Size: #240 Straight Sidebar Roller Chain
- Tensile Strength: 139,400lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 3.000
- Roller Width (W): 1.875
- Roller Diameter (R): 1.875
- Plate Thickness (T): 0.375
- Pin Diameter (D): 0.937
- Overall Width (F): 3.700
- Weight Per Foot: 17.25 lbs/FT
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Chain Size: #240 Straight Sidebar Roller Chain
- Tensile Strength: 139,400lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 3.000
- Roller Width (W): 1.875
- Roller Diameter (R): 1.875
- Plate Thickness (T): 0.375
- Pin Diameter (D): 0.937
- Overall Width (F): 3.700
- Weight Per Foot: 17.25 lbs/FT
