CA557 Roller Chain - 10ft Box | Agricultural Roller Chain

Roller Chain > More Roller Chains > Agricultural Roller Chain > CA557 Roller Chain

CA557 Roller Chain - 10ft Box | Agricultural Roller Chain

Note: Custom Cut to Length Chain Also Available
$274.99
SKU: CA557-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714981757295" , "metafield_value":""}]
CA557 Roller Chain - 10ft Box | Agricultural Roller Chain Features
CA557 Roller Chain - 10ft Box | Agricultural Roller Chain Specifications

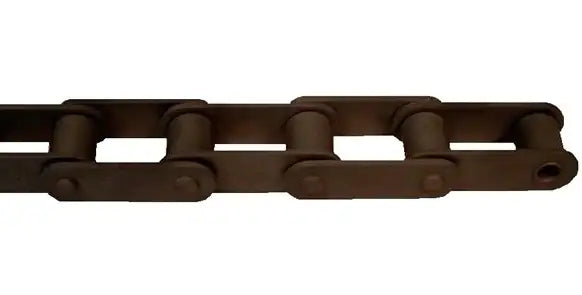

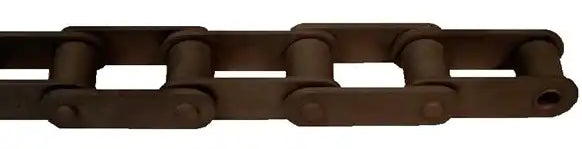

CA557 roller chain is commonly known as a CA557 agricultural roller chain or CA557 implement chain and is manufactured using hardened steel parts to close tolerances. Implement chains have been used in the farming and conveying industries since the early 1900s. Though dimensionally equivalent to other brands, our CA557 roller chain often has superior durability, high quality, high strength, and has a long working life. CA557 agricultural roller chain is found in a wide range of applications including; agriculture, conveyors, corn gathering, elevator feed stations, feeder house, forage harvesters, baggers, grain handling, manure spreaders, and more! We offer a full line of CA557 roller chain attachments that can be assembled onto the chain in any configuration needed. We also offer a full line CA557 roller chain sprockets and can supply them with almost any hub, bore, or tooth configuration needed. For more information on CA557 roller chain or to get a quote on attachments or sprockets please contact us and we will be happy to assist you.

CA557 Chain Dimensions

CA557 Roller Chain - 10ft Box | Agricultural Roller Chain
  • Chain Size: CA557
  • Pitch (P): 1.630"
  • Roller Width (W): 0.797"
  • Roller Diameter (D): 0.700"
  • Overall Width Riveted (C): 1.469"
  • Overall Width Cottered: 1.594"
  • Link Plate Height (H): 0.906"
  • Link Plate Thickness (T): 0.125"
  • Pin Diameter (E): 0.315"
  • Ultimate Strength: 16,500 LBS

  • Chain Size: CA557
  • Pitch (P): 1.630"
  • Roller Width (W): 0.797"
  • Roller Diameter (D): 0.700"
  • Overall Width Riveted (C): 1.469"
  • Overall Width Cottered: 1.594"
  • Link Plate Height (H): 0.906"
  • Link Plate Thickness (T): 0.125"
  • Pin Diameter (E): 0.315"
  • Ultimate Strength: 16,500 LBS
