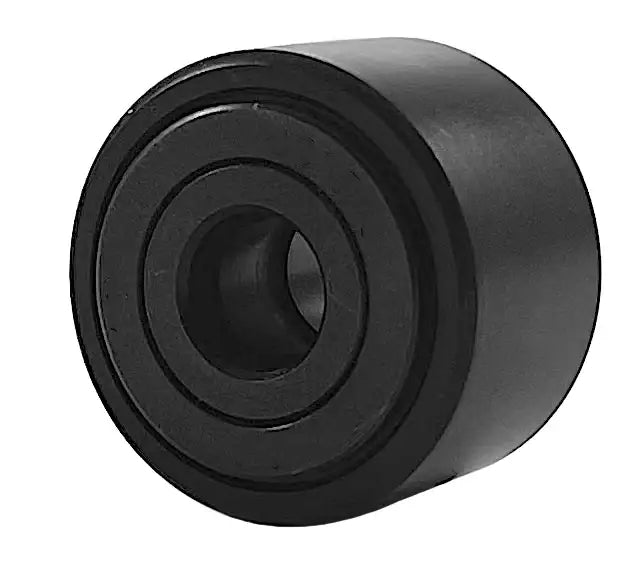

CYR 2S Cam Yoke | CYR2S Cam Yoke Roller

CYR2S Cam Yoke has a 2" roller diameter and is also referred to as a CYR 2S track roller. CYR 2S, by design, can withstand high load carrying capacities with minimal distorting or bending. To maximize efficiency and load capacity, a cam yoke roller bearing utilizes premium precision needle rollers in a full complement configuration (no cage). Our CYR 2S bearings are supplied fully lubricated from the factory with superior multipurpose grease with a convenient relubricate-able hole found in the inner race. Additionally, this cam yoke is supplied with internal thrust washers that act like seals for dusty environments or applications where infrequent lubrication occurs (open style/ non-sealed rollers are also available). Our CYR 2S bearings are also supplied with a black oxide corrosion-resistant finish. These cam yokes are commonly found in applications such as; indexing equipment, material handling, conveyors, ram support rollers, and more! For additional information or to get a quote on our CYR 2S cam yoke, contact our customer support team, and we will be happy to assist you!

CYR 2S Cam Yoke Dimensions

• Part #: CYR-2S
• Roller Diameter (RD): 2.000" +0.000/ -0.001
• Roller Width (W): 1.250" +0.000/ -0.005
• Bore Size: .6250" +0.002/ -0.004
• Width Over End Plates (WI): 1.3125" +0.005/ -0.010
• Diameter of End Plates (E): 1-13/32"
• Oil Hole Diameter (H): 3/32"
• Maximum Static Capacity: 21140 LBS
• Maximum Dynamic Capacity: 8090 LBS
