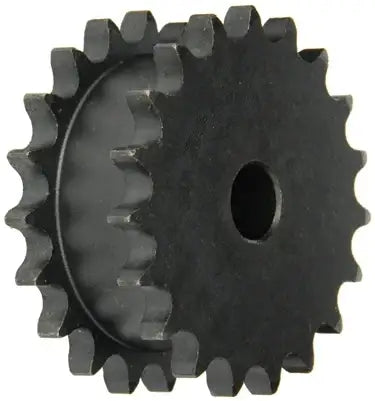

DS50A21H Sprocket (Double Single)

Note: Custom Cut to Length Chain Also Available
$62.99
SKU: DS50A21H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715091464559" , "metafield_value":""}]
DS50A21H Sprocket (Double Single) Features
DS50A21H Sprocket (Double Single) Specifications
This DS50A21H sprocket is a durable, high quality, and precision double single sprocket with 21 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This double single sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS50A21H sprockets with a stock bore are supplied with a standard 5/8" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:
DS50A21H Sprocket (Double Single)
  • Sprocket Size: DS50A21H
  • Tooth Count: 21
  • Outside Diameter: 4.520"
  • Pitch Diameter: 4.194"
  • Sprocket Type: A
  • Minimum Bore Size: 5/8"
  • Maximum Bore Size: 2-1/4"
  • Dimension (L): 1-21/32"
  • Dimension (C): 1-5/16"
  • Dimension (E): 3-31/64"
  • Dimension (W): 0.343"
  • Sprocket Weight: 4.8 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com


  • Sprocket Size: DS50A21H
  • Tooth Count: 21
  • Outside Diameter: 4.520"
  • Pitch Diameter: 4.194"
  • Sprocket Type: A
  • Minimum Bore Size: 5/8"
  • Maximum Bore Size: 2-1/4"
  • Dimension (L): 1-21/32"
  • Dimension (C): 1-5/16"
  • Dimension (E): 3-31/64"
  • Dimension (W): 0.343"
  • Sprocket Weight: 4.8 LBS
