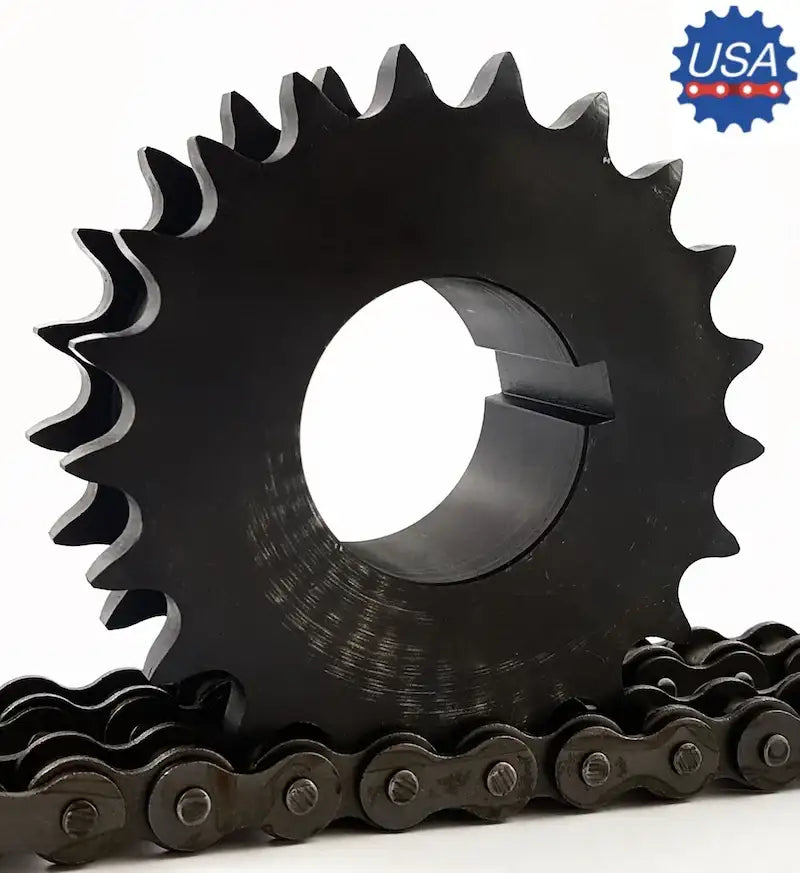

DS80Q19 Sprocket (Double Single)

Note: Custom Cut to Length Chain Also Available
$168.99
SKU: DS80Q19-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715093070191" , "metafield_value":""}]
DS80Q19 Sprocket (Double Single) Features
DS80Q19 Sprocket (Double Single) Specifications
This DS80Q19 sprocket is a durable, high quality, and precision double single sprocket with 19 hardened teeth that is manufactured to accept a Q1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80-1 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS80Q19 sprockets are made to accept a Q1 size QD bushing and run a #80-1 roller chain side-by-side which we stock as well. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information, custom quotes, or other components please contact us and we will be happy to assist you.

Dimensions:
DS80Q19 Sprocket (Double Single)
  • Sprocket Size: DS80Q19
  • Tooth Count: 19
  • Bushing Size: Q1
  • Outside Diameter: 6.590"
  • Pitch Diameter: 6.076"
  • Dimension (L1): 2-3/16"
  • Dimension (C): 1-5/8"
  • Dimension (E): 4-61/64"
  • Dimension (L2): 3-15/64"
  • Dimension (W): 0.575"
  • Sprocket Weight: 10.5 LBS
