Triple E40SK36 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: E40SK36-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Triple E40SK36 Sprocket Features
Triple E40SK36 Sprocket Specifications

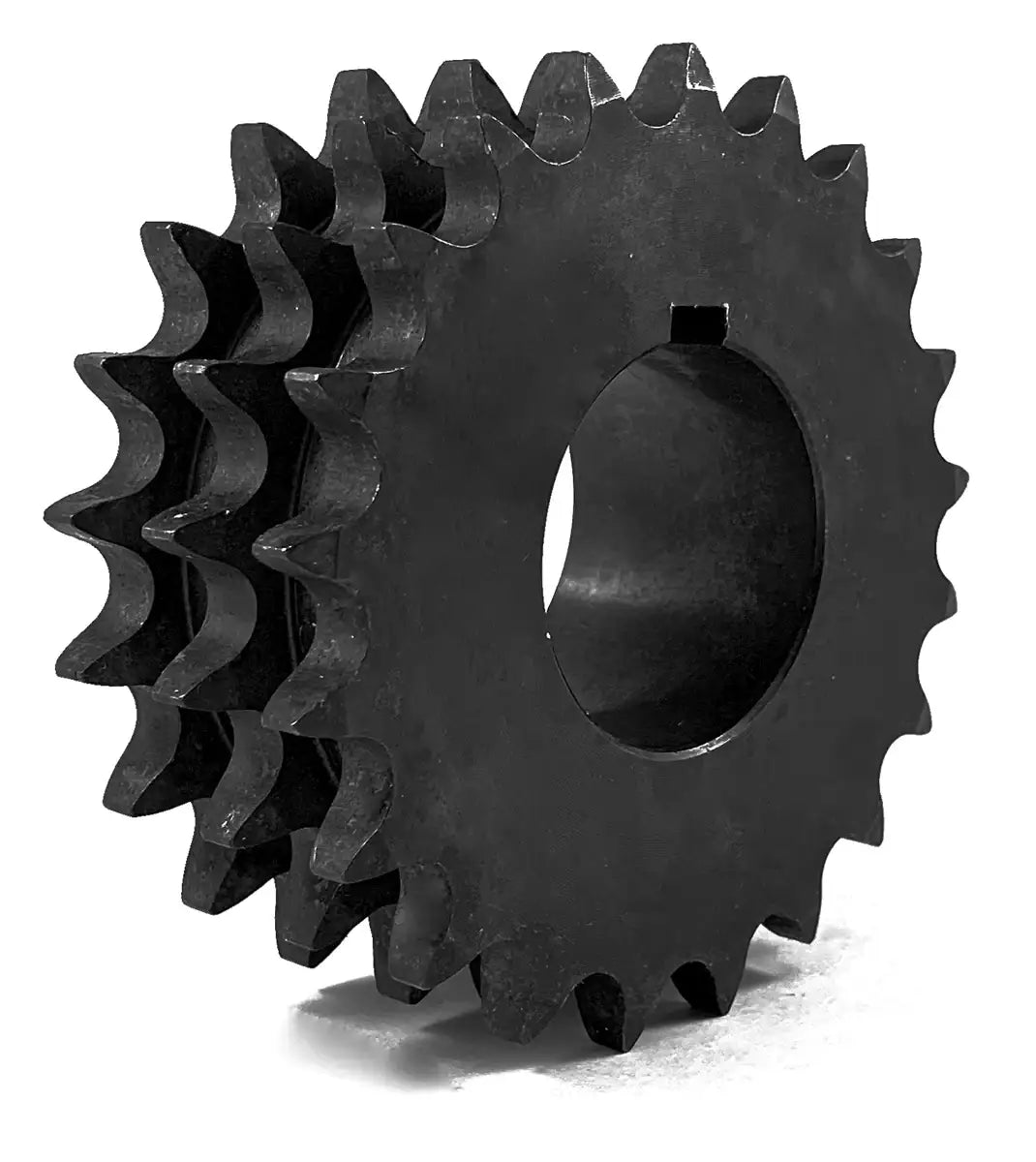

E40SK36 Sprocket is a triple 36-tooth quick detachable (QD) style sprocket that utilizes an SK QD Bushing. Our triple E40SK36 sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. Besides the sprocket, we also stock SK bushings, 40-3 triple roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E40SK36 Sprocket Dimensions
- Sprocket Size: E40SK36
- Tooth Count: 36
- Bushing Type: SK
- Outside Diameter: 6.020"
- Pitch Diameter: 5.737"
- Sprocket Type: B
- Maximum Bore: 2-5/8"
- Dimension (L1): 2-1/8"
- Dimension (L2): 2-1/8"
- Dimension (C): 3-7/8"
- Dimension (Y): 15/32"
- Dimension (X): 1-1/4"
- Dimension (T): 0.275"
- Dimension (W): 1.407"
- Sprocket Weight With Bushing: 8.16 LBS
- Sprocket Weight: 6.16 LBS
- Sprocket Size: E40SK36
- Tooth Count: 36
- Bushing Type: SK
- Outside Diameter: 6.020"
- Pitch Diameter: 5.737"
- Sprocket Type: B
- Maximum Bore: 2-5/8"
- Dimension (L1): 2-1/8"
- Dimension (L2): 2-1/8"
- Dimension (C): 3-7/8"
- Dimension (Y): 15/32"
- Dimension (X): 1-1/4"
- Dimension (T): 0.275"
- Dimension (W): 1.407"
- Sprocket Weight With Bushing: 8.16 LBS
- Sprocket Weight: 6.16 LBS
