Metric 05B Roller Chain - 10ft Box
Login to Request a Quote

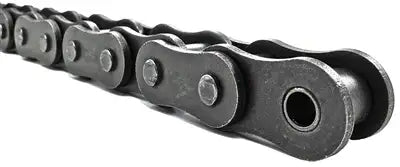

05B roller chain is manufactured to ISO British Standards and utilizes premium-precision parts. 05B metric roller chain is found in many industrial drive and conveying applications and has a pitch of 8.0 millimeters. Our metric chains dimensionally interchange with other brands but exceed in performance, strength, and working life. Implementing the use of heat-treated shot-peened components, factory pre-stressing, and premium lubrication have created an 05B chain that is made to last! We typically supply 05B-1 chain in 10ft boxes but it is also available in 5-meter boxes and larger length reels upon request, fore additional information please contact us and we will be happy to assist you.
05B Roller Chain Dimensions
|
Chain Size
|
Pitch (P)
|
Roller Width (W)
|
Roller Diameter (D)
|
Pin Diameter (E)
|
Plate Height (H)
|
C/L Width (A)
|
Breaking Load
|
Weight (Per Ft)
|
|---|---|---|---|---|---|---|---|---|
| 05B-1 | 8.0mm | 3.0mm | 5.0mm | 2.31mm | 7.1mm | 8.9mm | 5.9 kN | 0.18 kg/m |
Specifications Met:
- International Organization for Standardization - ISO 606B
- BS 228 British Standard
- DIN 8187 German Standard
| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Pin Diameter (E) | Plate Height (H) | C/L Width (A) | Breaking Load | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 05B-1 | 8.0mm | 3.0mm | 5.0mm | 2.31mm | 7.1mm | 8.9mm | 5.9 kN | 0.18 kg/m |
