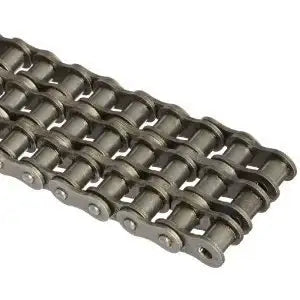

Premium Metric 06B-3 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: PREMIUM-06B-3-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium Metric 06B-3 Roller Chain - 10ft Box Features
Premium Metric 06B-3 Roller Chain - 10ft Box Specifications

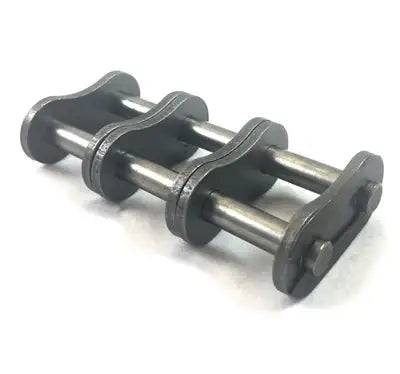

This 06B-3 roller chain conforms to all ISO standards and is a good quality, durable roller chain featuring solid rollers. Something else notable about 06B-3 roller chain is that it features heat-treated components, and is manufactured out if high-quality carbon steel. The heat-treated components of the chain help ensure strength and durability while the solid rollers and ISO standard construction of the chain provide a good performance and extended working life. 06B-3 roller chain is commonly supplied as 10ft boxes including one connecting link each, however we can supply this chain in longer lengths or cut to length strands. Additionally, we offer a full line of 06B-3 sprockets and attachments.
Dimensions:
Dimensions:
- Part Number: 06B-3
- Tensile Strength: 6,700 LBS
- Pitch (P): 0.375"
- Transverse Pitch (K): 0.403"
- Roller Link Width (W): 0.225"
- Roller Diameter (R): 0.250"
- Pin Diameter (D): 0.129"
- Overall Width (F): 1.350"
- Plate Thickness (T1): 0.039"
- Plate Thickness (T2): 0.051"
- Plate Height (H): 0.323"
- Weight: 0.738 LBS/ FT
- Part Number: 06B-3
- Tensile Strength: 6,700 LBS
- Pitch (P): 0.375"
- Transverse Pitch (K): 0.403"
- Roller Link Width (W): 0.225"
- Roller Diameter (R): 0.250"
- Pin Diameter (D): 0.129"
- Overall Width (F): 1.350"
- Plate Thickness (T1): 0.039"
- Plate Thickness (T2): 0.051"
- Plate Height (H): 0.323"
- Weight: 0.738 LBS/ FT
