Metric 08B-2 Roller Chain - 10ft Box

Roller Chain > More Roller Chains > British Standard Metric Roller Chain > Multi-Strand Metric (British Standard) Roller Chain > Double Strand Metric Roller Chain > 08B-2 Metric Roller Chain

Metric 08B-2 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$179.99
SKU: ECO-08B-2-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715116728687" , "metafield_value":""}]
Metric 08B-2 Roller Chain - 10ft Box Features
Metric 08B-2 Roller Chain - 10ft Box Specifications

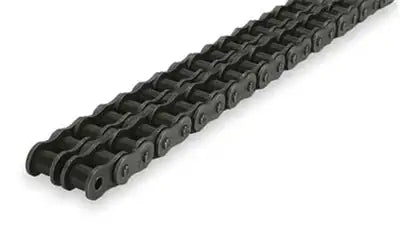

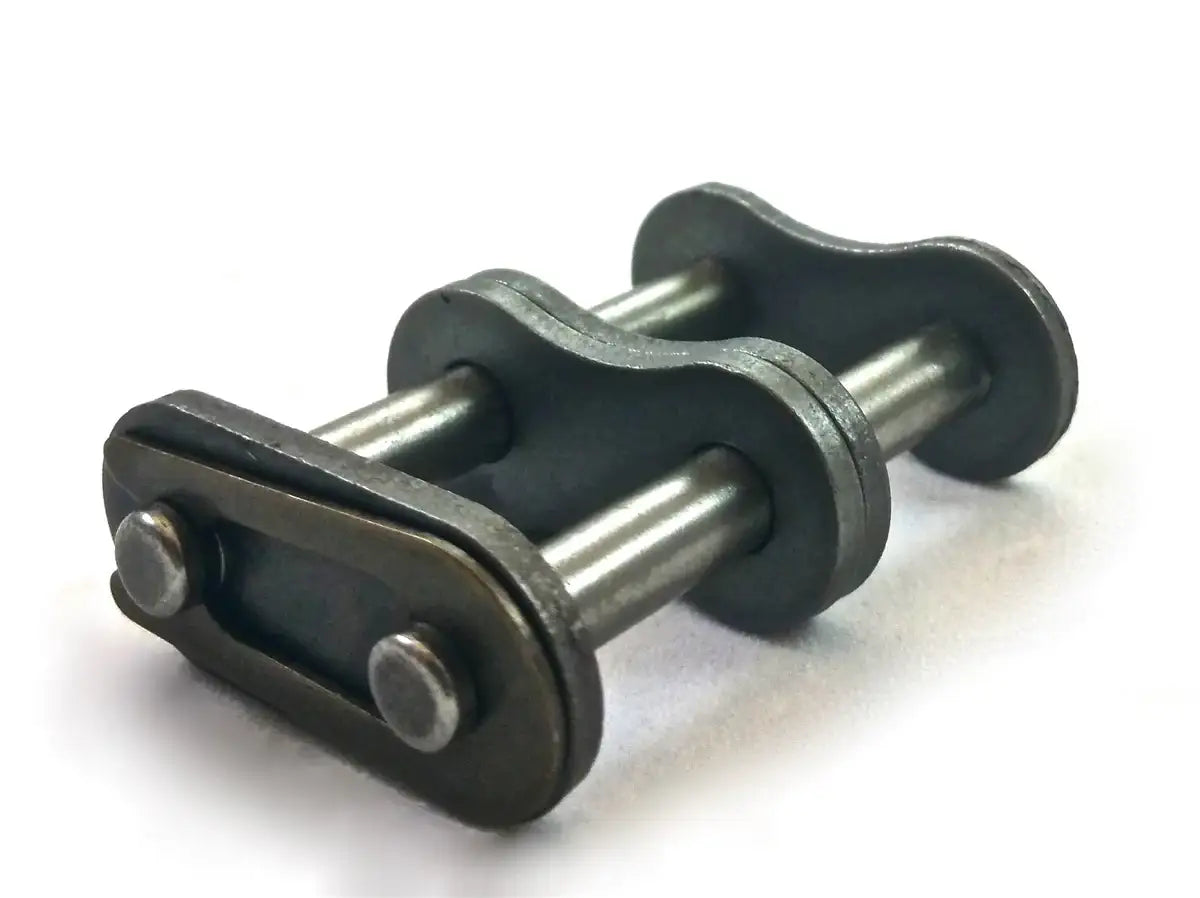

Economy Plus 08B-2 roller chain conforms to all ISO standards and is a good quality, durable roller chain. This 08B-2 roller chain features heat-treated components, carbon steel construction, and solid rollers. The heat-treated components of the chain help ensure strength and durability while the solid rollers and ISO standard construction of the chain provide a good performance and extended working life. 08B-2 roller chain is commonly supplied as 10ft boxes including one connecting link each, however we can supply this chain in longer lengths or cut to length strands. Additionally, we offer a full line of 08B-2 sprockets and attachments.

08B-2 Roller Chain Dimensions

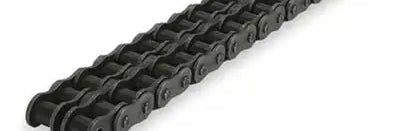

Metric 08B-2 Roller Chain - 10ft Box
  • Part Number: 08B-2
  • Tensile Strength: 7,300 LBS
  • Pitch (P): 0.500"
  • Transverse Pitch (K): 0.548"
  • Roller Link Width (W): 0.305"
  • Roller Diameter (R): 0.335"
  • Pin Diameter (D): 0.175"
  • Overall Width (F): 1.260"
  • Plate Thickness (T1): 0.059"
  • Plate Thickness (T2): 0.059"
  • Plate Height (H): 0.469"
  • Weight: 0.872 LBS/ FT

  • Part Number: 08B-2
  • Tensile Strength: 7,300 LBS
  • Pitch (P): 0.500"
  • Transverse Pitch (K): 0.548"
  • Roller Link Width (W): 0.305"
  • Roller Diameter (R): 0.335"
  • Pin Diameter (D): 0.175"
  • Overall Width (F): 1.260"
  • Plate Thickness (T1): 0.059"
  • Plate Thickness (T2): 0.059"
  • Plate Height (H): 0.469"
  • Weight: 0.872 LBS/ FT
