Roller Chain > Roller Chain by Size > #100 Roller Chain

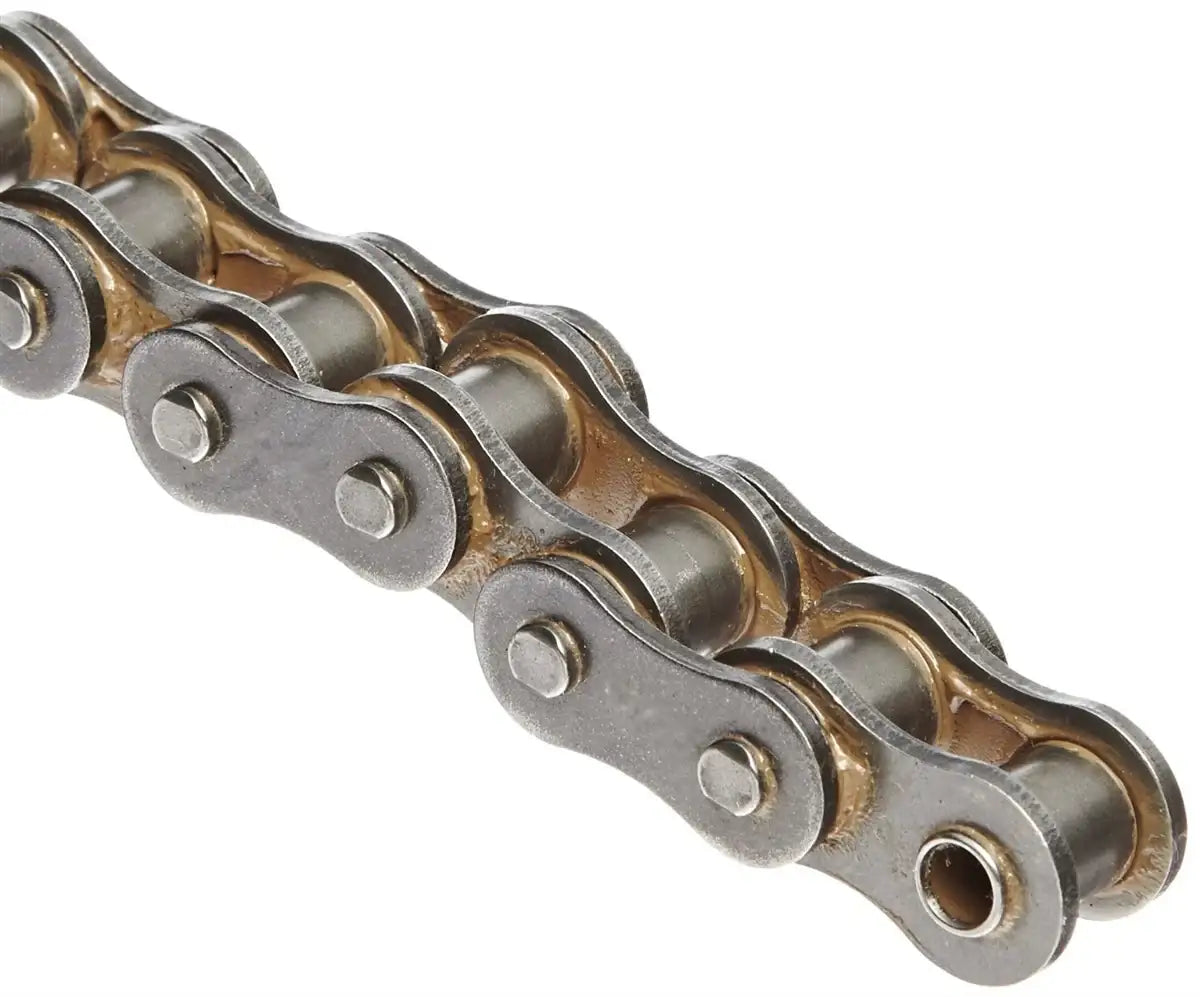

#100 O-Ring Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-100OR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#100 O-Ring Roller Chain - 10ft Box Features
#100 O-Ring Roller Chain - 10ft Box Specifications
O-ring roller chain is a great upgrade for your application. O-ring chain has been tested and results have shown that O-ring chain can last up to 10 times longer than standard roller chain. The O-ring chain is named for the rubber O-rings built into the space between the outside link plate and the inside roller link plates. O-rings are included as a way to improve lubrication to the links of power transmission chains, a service that is vitally important to extending their working life. These rubber fixtures form a barrier that holds factory applied lubricating grease inside of the pin and bushing wear areas. Further, the rubber O-rings prevent dirt and other contaminants from entering the inside of the chain linkages, where such particles would otherwise cause significant wear. O-ring chain fits in standard chain applications. From industrial to agriculture, our O-ring Series roller chain is designed to last longer than any standard roller chain. This chain will be supplied as a 10ft box including one connecting link.
- Chain Size: #100 O-Ring Roller Chain
- Tensile Strength: 24,000lbs

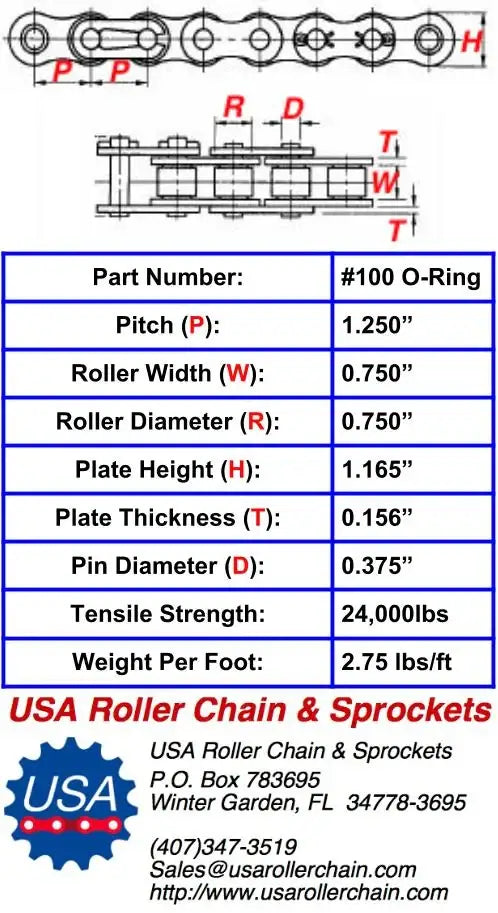

- **Note: All Dimensions Are in Inches**
- Pitch (P): 1.250
- Roller Width (W): 0.750
- Roller Diameter (R): 0.750
- Plate Height (H): 1.165
- Plate Thickness (T): 0.156
- Pin Diameter (D): 0.375
