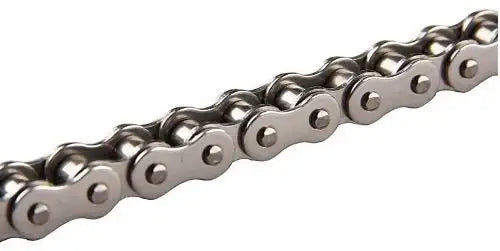

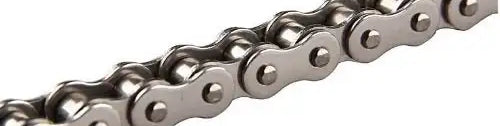

Economy Plus #100 Stainless Steel Roller Chain - 10ft Box

This #100 Stainless Steel Roller Chain fully meets all ANSI standards and is a durable, corrosion resistant, stainless steel roller chain. Economy Plus #100 stainless steel roller chain has a tensile strength of 18,500lbs and is constructed entirely out of 304-grade stainless steel. Making a roller chain using 304-Grade Stainless Steel creates a stainless steel roller chain that is high strength, resistant to chemical attack, and highly resistant to corrosion. This #100 stainless steel roller chain can run in temperatures ranging from -200° - 700° Degrees Fahrenheit, (these temperatures may vary based on application). #100 Stainless Steel roller chain is supplied as 10ft boxes, each 10ft box will come with one connecting link, and we offer additional connecting links and offset links if needed. We also offer a full line of #100 Stainless Steel Sprockets and attachments. For additional information on #100 stainless steel roller chain, or to get a quote for special lengths, or attachments, or sprockets, please contact us and we will be happy to assist you.

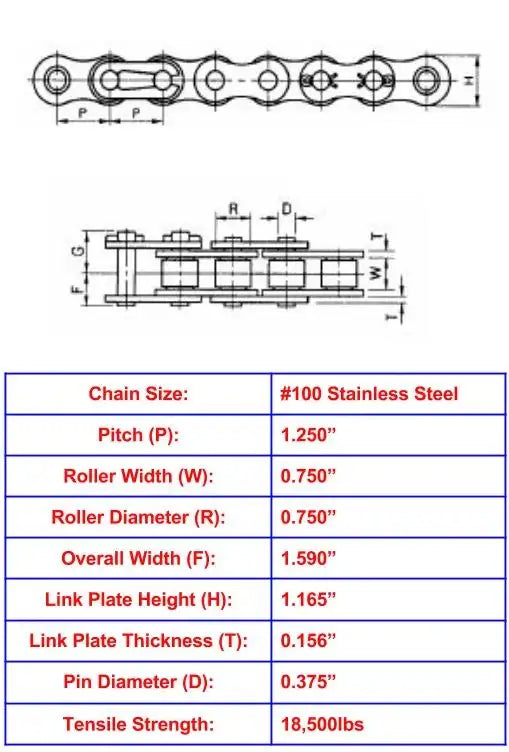

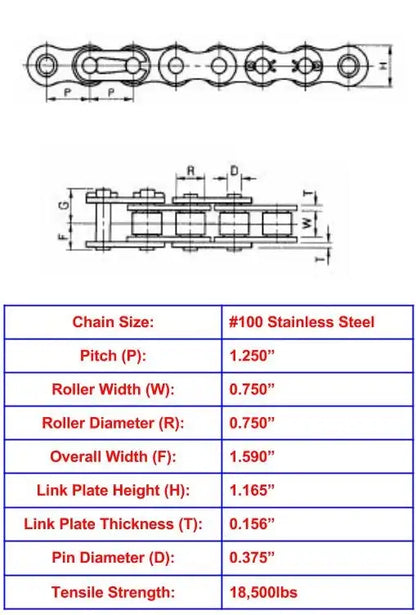

Economy Plus #100 Stainless Steel Roller Chain Dimensions

• Chain Size: #100SS
• Tensile Strength: 18,500lbs
• Pitch (P): 1.250"
• Roller Width (W): 0.750"
• Roller Diameter (D): 0.750"
• Overall Chain Width (F): 1.590"
• Link Plate Height (H): 1.165"
• Link Plate Thickness (T): 0.156"
• Pin Diameter (E): 0.375"
• Specifications Met: ANSI Standards
