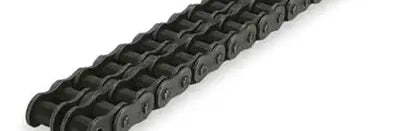

Metric 12B-2 Roller Chain - 10ft Box

Roller Chain > More Roller Chains > British Standard Metric Roller Chain > Multi-Strand Metric (British Standard) Roller Chain > Double Strand Metric Roller Chain > 12B-2 Metric Roller Chain

Metric 12B-2 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$274.99
SKU: ECO-12B-2-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715119448431" , "metafield_value":""}]
Metric 12B-2 Roller Chain - 10ft Box Features
Metric 12B-2 Roller Chain - 10ft Box Specifications
Economy Plus 12B-2 roller chain conforms to all ISO standards and is a good quality, durable roller chain. This 12B-2 roller chain features heat-treated components, carbon steel construction, and solid rollers. The heat-treated components of the chain help ensure strength and durability while the solid rollers and ISO standard construction of the chain provide a good performance and extended working life. 12B-2 roller chain is commonly supplied as 10ft boxes including one connecting link each, however we can supply this chain in longer lengths or cut to length strands. Additionally, we offer a full line of 12B-2 sprockets and attachments.

12B-2 Roller Chain Dimensions

Metric 12B-2 Roller Chain - 10ft Box
  • Part Number: 12B-2
  • Tensile Strength: 13,500 LBS
  • Pitch (P): 0.750"
  • Transverse Pitch (K): 0.766"
  • Roller Link Width (W): 0.460"
  • Roller Diameter (R): 0.475"
  • Pin Diameter (D): 0.225"
  • Overall Width (F): 1.697"
  • Plate Thickness (T1): 0.071"
  • Plate Thickness (T2): 0.071"
  • Plate Height (H): 0.634"
  • Weight: 1.529 LBS/ FT
  • Part Number: 12B-2
  • Tensile Strength: 13,500 LBS
  • Pitch (P): 0.750"
  • Transverse Pitch (K): 0.766"
  • Roller Link Width (W): 0.460"
  • Roller Diameter (R): 0.475"
  • Pin Diameter (D): 0.225"
  • Overall Width (F): 1.697"
  • Plate Thickness (T1): 0.071"
  • Plate Thickness (T2): 0.071"
  • Plate Height (H): 0.634"
  • Weight: 1.529 LBS/ FT
