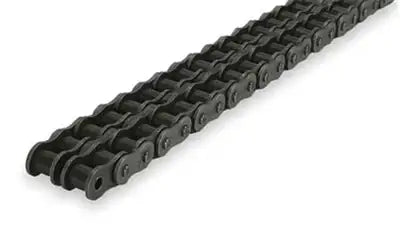

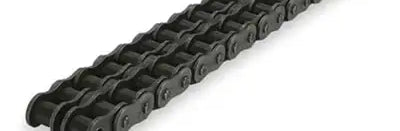

Metric 16B-2 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$531.99
SKU: ECO-16B-2-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 16B-2 Roller Chain - 10ft Box Features
Metric 16B-2 Roller Chain - 10ft Box Specifications

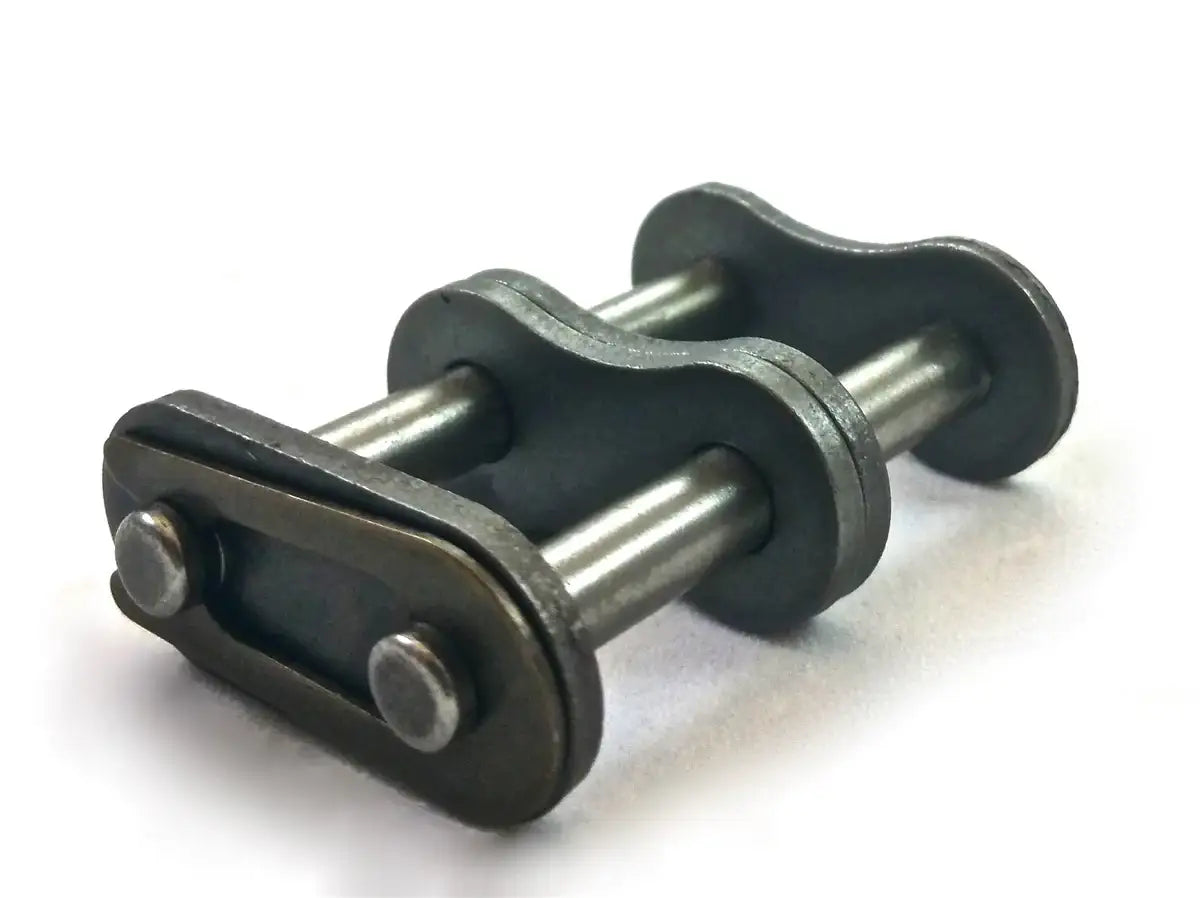

Economy Plus 16B-2 roller chain conforms to all ISO standards and is a good quality, durable roller chain. This 16B-2 roller chain features heat-treated components, carbon steel construction, and solid rollers. The heat-treated components of the chain help ensure strength and durability while the solid rollers and ISO standard construction of the chain provide a good performance and extended working life. 16B-2 roller chain is commonly supplied as 10ft boxes including one connecting link each, however we can supply this chain in longer lengths or cut to length strands. Additionally, we offer a full line of 16B-2 sprockets and attachments.
Dimensions:
Dimensions:
- Part Number: 16B-2
- Tensile Strength: 28,000 LBS
- Pitch (P): 1.000"
- Transverse Pitch (K): 1.255"
- Roller Link Width (W): 0.670"
- Roller Diameter (R): 0.625"
- Pin Diameter (D): 0.326"
- Overall Width (F): 2.756"
- Plate Thickness (T1): 0.126"
- Plate Thickness (T2): 0.157"
- Plate Height (H): 0.819"
- Weight: 3.433 LBS/FT
- Part Number: 16B-2
- Tensile Strength: 28,000 LBS
- Pitch (P): 1.000"
- Transverse Pitch (K): 1.255"
- Roller Link Width (W): 0.670"
- Roller Diameter (R): 0.625"
- Pin Diameter (D): 0.326"
- Overall Width (F): 2.756"
- Plate Thickness (T1): 0.126"
- Plate Thickness (T2): 0.157"
- Plate Height (H): 0.819"
- Weight: 3.433 LBS/FT
