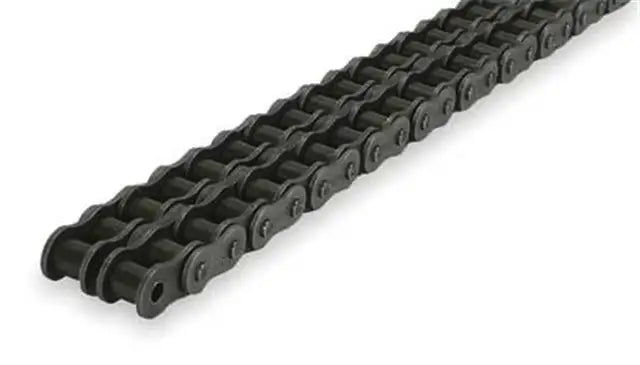

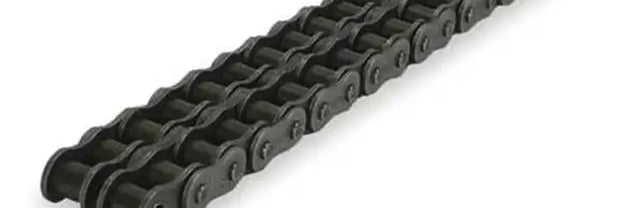

Economy Plus #240-2 Double Strand Roller Chain - 10ft Box

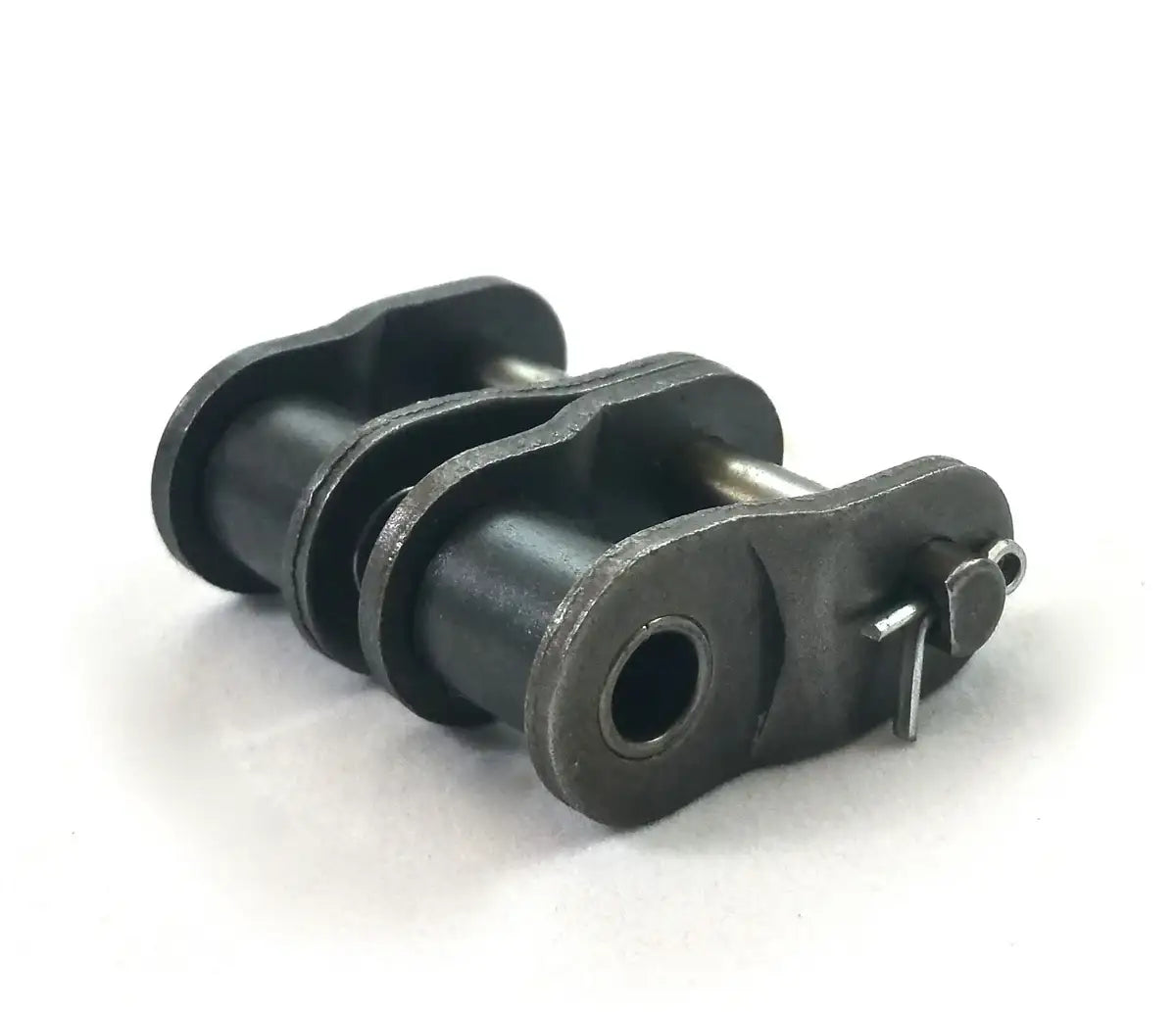

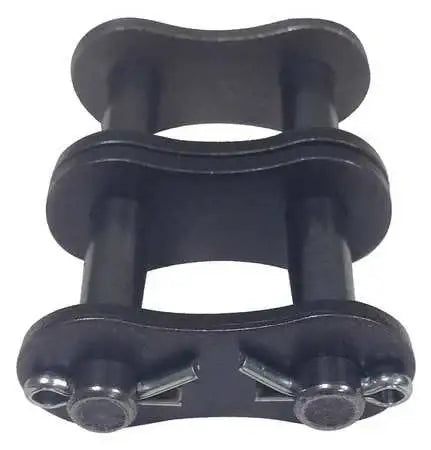

This #240-2 double strand roller chain fully meets all ANSI standards and is a durable, economically priced roller chain that has a tensile strength of 260,000lbs. The Economy Plus series roller chains feature heat-treated side plates to ensure the strength and durability of the roller chain. This roller chain also features solid rollers which will increase the performance and overall working life of the chain. Economy Plus #240-2 double strand roller chain is commonly supplied as 10ft boxes, but alternate lengths are available per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets as well as a full line of attachments for this chain. For additional information or general questions on Economy Plus Series #240-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

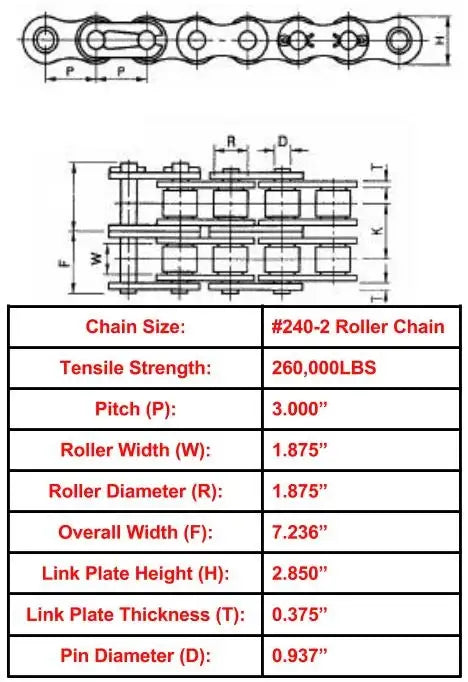

Economy Plus #240-2 Double Strand Roller Chain Dimensions

• Chain Size: #240-2
• Tensile Strength: 260,000lbs
• Pitch (P): 3.000"
• Roller Width (W): 1.875"
• Roller Diameter (R): 1.875"
• Overall Chain Width (F): 7.236"
• Link Plate Height (H): 2.850"
• Link Plate Thickness (T): 0.375"
• Pin Diameter (D): 0.937"
• Specifications Met: ANSI Standards
