Economy Plus #240-3 Triple Strand Cottered Roller Chain - 10ft Box

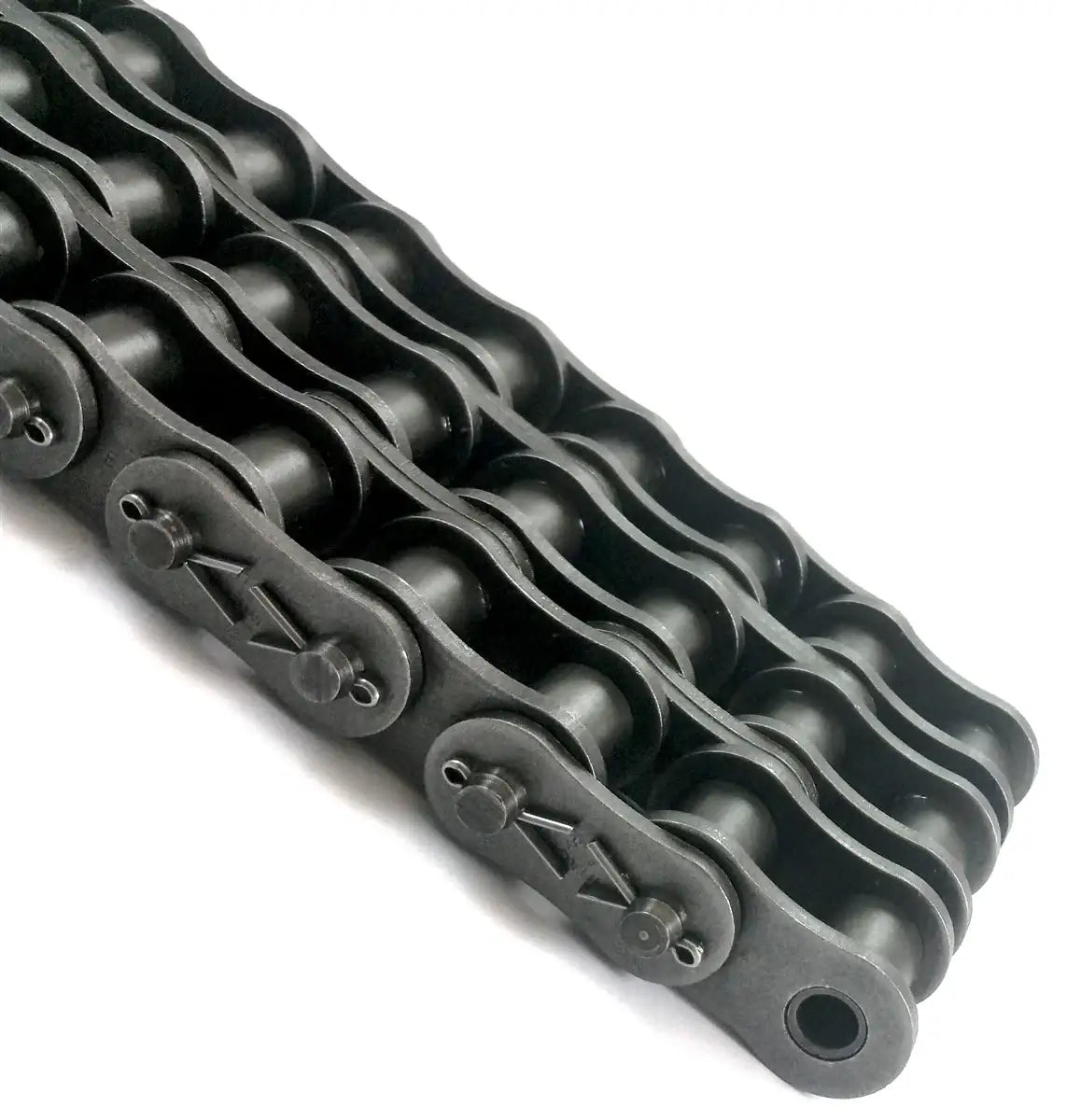

This #240-3 triple strand cottered roller chain fully meets all ANSI standards and is a durable, economically priced cottered roller chain that has a tensile strength of 390,000lbs. Cottered roller chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. The Economy Plus series cottered roller chains feature heat-treated side plates to ensure the strength and durability of the roller chain. This roller chain also features solid rollers which will increase the performance and overall working life of the chain. Economy Plus #240-3 triple strand cottered roller chain is commonly supplied as 10ft boxes, but alternate lengths are available per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the Economy Plus Series #240-3 Triple Strand Cottered Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

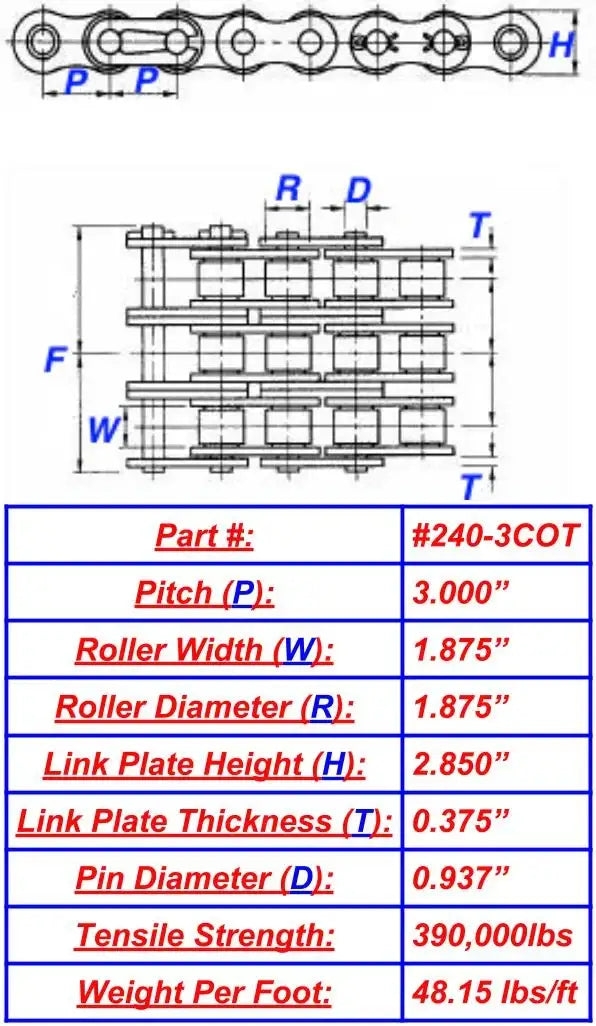

Economy Plus #240-3 Triple Strand Cottered Roller Chain Dimensions

• Chain Size: #240-3 Cottered Roller Chain
• Tensile Strength: 390,000lbs
• Pitch (P): 3.000"
• Roller Width (W): 1.875"
• Roller Diameter (D): 1.875"
• Link Plate Height (H): 2.850"
• Link Plate Thickness (T): 0.375"
• Pin Diameter (E): 0.937"
• Specifications Met: ANSI Standards
