Roller Chain > More Roller Chains > British Standard Metric Roller Chain > Multi-Strand Metric (British Standard) Roller Chain > Triple Strand Metric Roller Chain > 24B-3 Metric Roller Chain

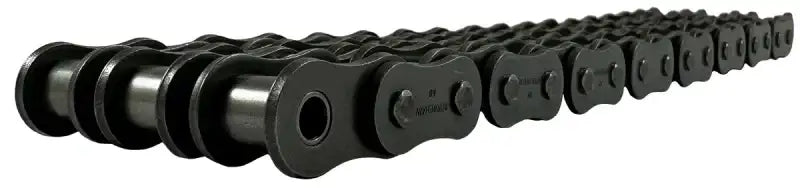

Premium Metric 24B-3 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$2,494.99
SKU: PREMIUM-24B-3-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715122856303" , "metafield_value":""}]
Premium Metric 24B-3 Roller Chain - 10ft Box Features
Premium Metric 24B-3 Roller Chain - 10ft Box Specifications
24B-3 roller chain is a 38.10mm pitch triplex (triple-strand) metric roller chain made per ISO and British Standards. As a triple-strand roller chain, it is engineered to operate in demanding applications that other strand widths would be incapable of. What makes our 24B-3 roller chain special is the use of high-grade alloy and carbon steel materials per component and processes like heat-treating and shot peening done to each component before assembly. The chain is also factory pre-loaded to reduce significantly or eliminate initial and long-term elongation. Stacking up these features produces an 24B-3 chain that is more capable and has a superior lifespan than others available. This chain is supplied as a 10ft box, including one connecting link. We also provide 24B-3 roller chain sprockets and tools for making replacement or repairs easier. For additional information or to request a quote for our tier one 24B-3 chain, contact our customer service team, and we will be happy to assist you!

24B-3 Chain Dimensions

Premium Metric 24B-3 Roller Chain - 10ft Box
  • Part #: 24B-3
  • Pitch (P): 38.10mm
  • Roller Width (R): 25.40mm
  • Roller Diameter (D): 25.40mm
  • Overall Width (W): 150.20mm
  • Connecting Link Overall Width (X): 156.80mm
  • Plate Height (H): 33.40mm
  • Plate Thickness (T): 5.56mm
  • Pin Diameter (L): 14.63mm
  • Minimum Breaking Load: 43,330 KGS
  • Weight: 20.1 kG/ m

24b-3 chain dimensions
  • Part #: 24B-3
  • Pitch (P): 38.10mm
  • Roller Width (R): 25.40mm
  • Roller Diameter (D): 25.40mm
  • Overall Width (W): 150.20mm
  • Connecting Link Overall Width (X): 156.80mm
  • Plate Height (H): 33.40mm
  • Plate Thickness (T): 5.56mm
  • Pin Diameter (L): 14.63mm
  • Minimum Breaking Load: 43,330 KGS
  • Weight: 20.1 kG/ m
