#40 O-Ring Roller Chain
#40 O-Ring Roller Chain - 10ft Box
#40 O-Ring Roller Chain - 10ft Box
#40 O-Ring Roller Chain
#40 O-Ring Roller Chain - 10ft Box
#40 O-Ring Roller Chain - 10ft Box

Roller Chain > Roller Chain by Size > 40 Roller Chain

#40 O-Ring Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: ECO-40OR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715125215599" , "metafield_value":""}]
#40 O-Ring Roller Chain - 10ft Box Features
#40 O-Ring Roller Chain - 10ft Box Specifications
O-ring roller chain is a great upgrade for your application. O-ring chain has been tested and results have shown that O-ring chain can last up to 10 times longer than standard roller chain. The O-ring chain is named for the rubber O-rings built into the space between the outside link plate and the inside roller link plates. O-rings are included as a way to improve lubrication to the links of power transmission chains, a service that is vitally important to extending their working life. These rubber fixtures form a barrier that holds factory applied lubricating grease inside of the pin and bushing wear areas. Further, the rubber O-rings prevent dirt and other contaminants from entering the inside of the chain linkages, where such particles would otherwise cause significant wear. O-ring chain fits in standard chain applications. From industrial to agriculture, our O-ring Series roller chain is designed to last longer than any standard roller chain. This chain will be supplied as a 10ft box including one connecting link.
  • Chain Size: #40 O-Ring Roller Chain
  • Tensile Strength: 3,700lbs

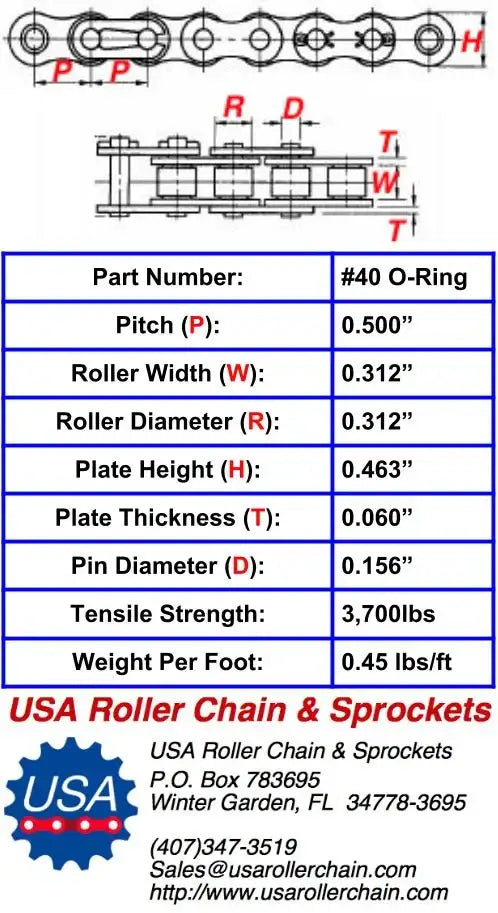

  • **Note: All Dimensions Are in Inches**
  • Pitch (P): 0.500
  • Roller Width (W): 0.312
  • Roller Diameter (R): 0.312
  • Plate Height (H): 0.463
  • Plate Thickness (T): 0.060
  • Pin Diameter (D): 0.156
