Roller Chain > Standard Roller Chains > Multiple Strand Roller Chain > Double Strand (Duplex) Roller Chain

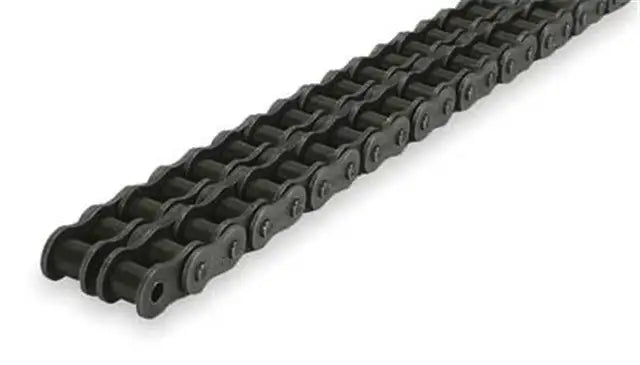

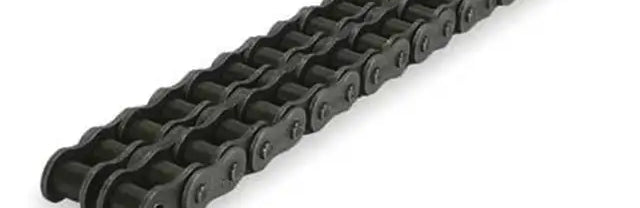

ANSI 80-2 Roller Chain 10ft - 80-2 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-80-2-10FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
ANSI 80-2 Roller Chain 10ft - 80-2 Chain Features
ANSI 80-2 Roller Chain 10ft - 80-2 Chain Specifications
This 80-2 roller chain fully meets all ANSI standards and is a durable, economically priced double roller chain that has a tensile strength of 29,000lbs. The Economy Plus series roller chains feature heat-treated side plates to ensure the strength and durability of the roller chain. This roller chain also features solid rollers which will increase the performance and overall working life of the chain. 80-2 roller chain is commonly supplied as 10ft boxes, but alternate lengths are available per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality 80-2 attachments. For additional information or general questions on 80-2 Roller chain or any of its accessories, please contact us and we will be happy to assist you.
Additionally we stock a full line of premium80-2 roller chain sprockets

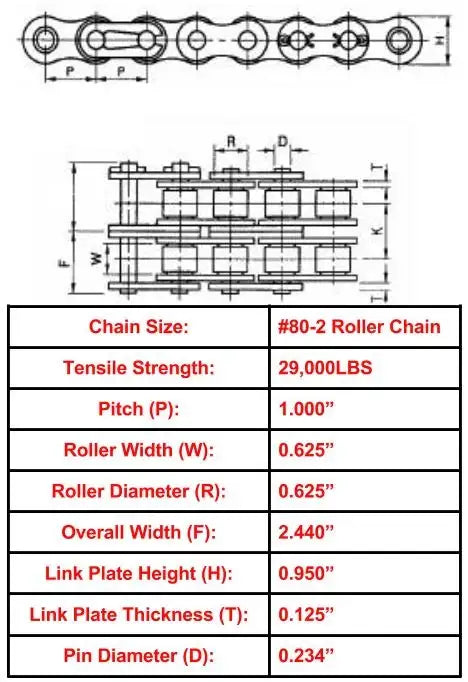

80-2 Roller Chain Dimensions
- Chain Size: #80-2
- Tensile Strength: 29,000lbs
- Pitch (P): 1.000"
- Roller Width (W): 0.625"
- Roller Diameter (R): 0.625"
- Overall Chain Width (F): 2.440"
- Link Plate Height (H): 0.950"
- Link Plate Thickness (T): 0.125"
- Pin Diameter (D): 0.234"
- Specifications Met: ANSI Standards
Additionally we stock a full line of premium
- Chain Size: #80-2
- Tensile Strength: 29,000lbs
- Pitch (P): 1.000"
- Roller Width (W): 0.625"
- Roller Diameter (R): 0.625"
- Overall Chain Width (F): 2.440"
- Link Plate Height (H): 0.950"
- Link Plate Thickness (T): 0.125"
- Pin Diameter (D): 0.234"
- Specifications Met: ANSI Standards
