Roller Chain > Roller Chain by Size > 80 Roller Chain

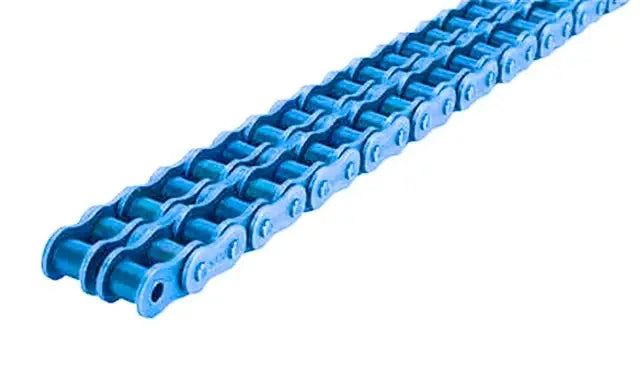

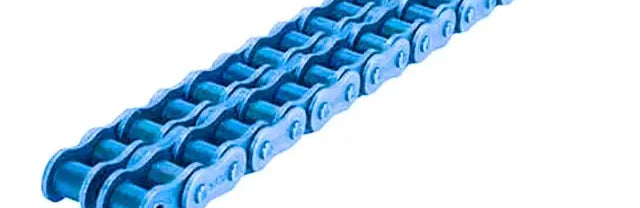

Economy Plus #80-2 Double Strand Corrosion Resistant Coated Roller Chain - 10ft Box
Login to Request a Quote

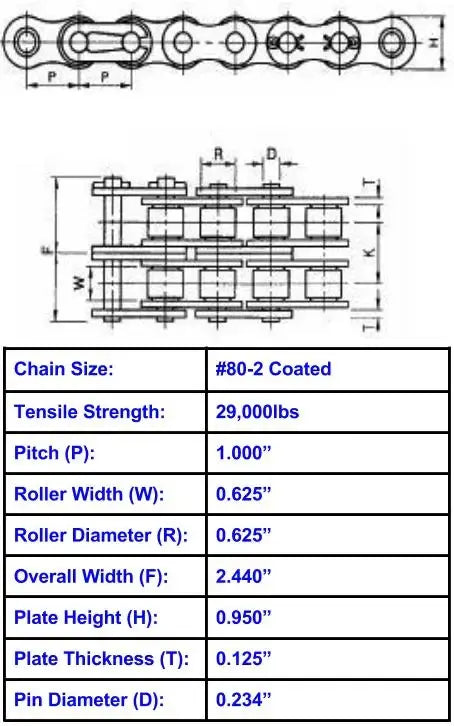

Dimensions
- Chain Size: #80-2 Coated
- Tensile Strength: 29,000lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 1.000
- Roller Width (W): 0.625
- Roller Diameter (D): 0.625
- Overall Chain Width: 2.440
- Link Plate Height (H): 0.950
- Link Plate Thickness (T): 0.125
- Pin Diameter (E): 0.234
- Specifications Met: ANSI Standards
- Chain Size: #80-2 Coated
- Tensile Strength: 29,000lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 1.000
- Roller Width (W): 0.625
- Roller Diameter (D): 0.625
- Overall Chain Width: 2.440
- Link Plate Height (H): 0.950
- Link Plate Thickness (T): 0.125
- Pin Diameter (E): 0.234
- Specifications Met: ANSI Standards
