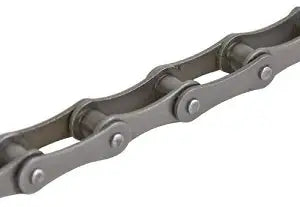

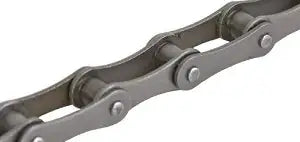

A2050 Roller Chain - 10ft Box
Login to Request a Quote
This A2050 roller chain is manufactured to ANSI Specifications and is a good quality roller chain. It is also commonly referred to as A2050 agricultural roller chain due to its heavy usage in the agriculture industry but is used in a very wide range of other applications too. A2050 roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally we offer a full line of high-quality A2050 chain sprockets right off the shelf! Fore more information or to get a quote on sprockets please contact us and we will be happy to assist you.
A2050 Chain Dimensions
- Chain Size: A2050
- Pitch (P): 1.250"
- Roller Width (W): 0.375"
- Roller Diameter (R): 0.400"
- Plate Height (H): 0.593"
- Plate Thickness (T): 0.080"
- Pin Diameter (D): 0.200"
- Chain Width (F): 0.802"
- Connecting Link Width (G): 0.851"
- Tensile Strength: 6,100 LBS
- Weight: 0.50 LBS/ FT
A2050 Roller Chain Sprockets
Needing sprockets to go with your chain? We have those in stock as well, and all under one roof so you save on shipping charges. What sets our A2050 roller chain sprockets apart from others is that they are manufactured out of high-strength SAE1045 steel, have hardened teeth, and are black oxide coated for corrosion resistance. These things insure that the sprocket is durable and holds up in even the toughest of applications. The chart below shows the in-stock sprockets for A2050 chain, but if you don't see the size that you need we can manufacture it within a few days.
| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
| 24 | 5.120" | 23/32" | -- | -- | 1.58 LBS | |
| 25 | 5.320" | 23/32" | -- | -- | 1.68 LBS | |
| 26 | 5.223" | 23/32" | -- | -- | 1.88 LBS | |
| 28 | 5.920" | 23/32" | -- | -- | 2.22 LBS | |
| 30 | 6.320" | 23/32" | -- | -- | 2.54 LBS | |
| 2050B11 | 11 | 2.500" | 5/8" | 13/16" | 1" | 0.62 LBS |
| 12 | 2.710" | 5/8" | 1" | 1" | 0.80 LBS | |
| 13 | 2.910" | 5/8" | 1-7/32" | 1" | 0.82 LBS | |
| 14 | 3.110" | 5/8" | 1-9/32" | 1" | 1.00 LBS | |
| 15 | 3.320" | 5/8" | 1-13/32" | 1" | 1.22 LBS | |
| 16 | 3.520" | 5/8" | 1-13/32" | 1" | 1.44 LBS | |
| 17 | 3.720" | 5/8" | 1-3/4" | 1" | 1.68 LBS | |
| 18 | 3.920" | 5/8" | 1-25/32" | 1" | 1.94 LBS | |
| 19 | 4.120" | 5/8" | 1-31/32" | 1" | 2.24 LBS | |
| 20 | 4.320" | 3/4" | 2" | 1" | 2.30 LBS | |
| 21 | 4.520" | 3/4" | 2" | 1" | 2.40 LBS | |
| 2050B22 | 22 | 4.720" | 3/4" | 2" | 1" | 2.54 LBS |
| 23 | 4.920" |
3/4" | 2" | 1" | 2.66 LBS | |
| 24 | 5.120" | 3/4" | 2" | 1-1/4" | 3.30 LBS | |
| 25 | 5.320" | 3/4" | 2" | 1-1/4" | 3.42 LBS | |
| 26 | 5.520" | 3/4" | 2" | 1-1/4" | 3.62 LBS | |
| 28 | 5.920" | 3/4" | 2" | 1-1/4" | 3.78 LBS | |
| 30 | 6.320" | 3/4" | 2-1/4" | 1-1/4" | 4.58 LBS |
